Subminiature Fuse Axial Lead UR, CSA Certificate

Model NO.: 215 215-1 series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: UL Specification: 3x7 mm HS Code: 85361000  215  215-1 series
This kind of fuse has a very broad range of applications: it can be used for a variety of precision power supply, audio video controller, LCD monitor, medical equipment and military products, etc. The product is also known as 3*7 fast micro fuses, which conform to UL248-1 and UL248-14 standards, and obtained the certification of American UR certification and CSA of Canada. The advantages of the fuse include small volume, convenient use, and small installation area. The fuses adopt color ring mark, thus the ampere figures can be seen at a glance. The fuse can also be added with insulation protection to be isolated with other electronic components according to the customer requirements.

Unit:mm





Electrical  characteristics

Model	Rated current (A)	Rated voltage (V)	color
215/215-1	500mA	125	Gray
215/215-1	630mA	125	Blue and orange
215/215-1	750mA	125	Orange
215/215-1	800mA	125	Gray and black
215/215-1	1A	125	Double brown
215/215-1	1.25A	125	Brown and red
215/215-1	1.5A	125	Brown and gray
215/215-1	1.6A	125	Brown and blue
215/215-1	2A	125	Double red
215/215-1	2.5A	125	Red and gray
215/215-1	3A	125	Double orange
215/215-1	3.5A	125	Orange and gray
215/215-1	4A	125	Double yellow
215/215-1	5A	125	Double green
215/215-1	6A	125	Double blue
215/215-1	7A	125	Double purple
215/215-1	10A	125	Brown and black


Current characteristics

Rated	Blowing time
110%	4 hour Min
200%	60 sec Max



Rated breaking capacity
50 amperes at 125V AC(500mA~10A)
100 amperes at 125V DC(63mA~10A)


Certification

Model	Certification	Certification number	Current range
215  215-1	UR	JDYX2.E171685	100mA-10A
215  215-1	CSA	JDYX8.E171685	100mA-10A

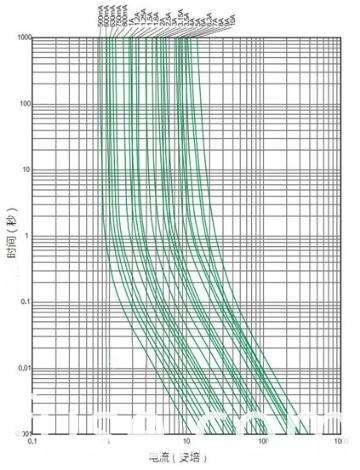

215  215-1Current-time curve
