Micro Fuse Fast-Acting RF2-8 Series
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: RF2-8 series
Product Description
Model NO.: RF2-8 series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Specification: 8.5x8 mm/8.4x4 mm HS Code: 85361000 Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Trademark: songshan Origin: Shanghai, China RF2-8 series
This type of fast-acting micro fuses are mainly used in charger, white home appliances, power supply and industrial control. The dimension of the fuses is 8.5 x 8.5 mm, and the lead part is 19 mm length regularly, but it can be adjusted appropriately according to the customer requirements. The fuses meet the standards: QJB/YXRT39-2015 enterprise military standard of China, and also IEC 60127-III, and passed the VDE certification. The breaking capacity: 10In or 35A, whichever is higher, rated voltage: 300V or 250V. The rated current range: 500mA ~ 5A.
Unit:mm

Electrical characteristics
Current characteristics
Rated breaking capacity
35A or 10In whichever is greater
RF2-8 Current-time curve

Current(A)
Contact us if you need more details on Micro Fuse Types. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Fast Blow Fuse、Little Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
This type of fast-acting micro fuses are mainly used in charger, white home appliances, power supply and industrial control. The dimension of the fuses is 8.5 x 8.5 mm, and the lead part is 19 mm length regularly, but it can be adjusted appropriately according to the customer requirements. The fuses meet the standards: QJB/YXRT39-2015 enterprise military standard of China, and also IEC 60127-III, and passed the VDE certification. The breaking capacity: 10In or 35A, whichever is higher, rated voltage: 300V or 250V. The rated current range: 500mA ~ 5A.

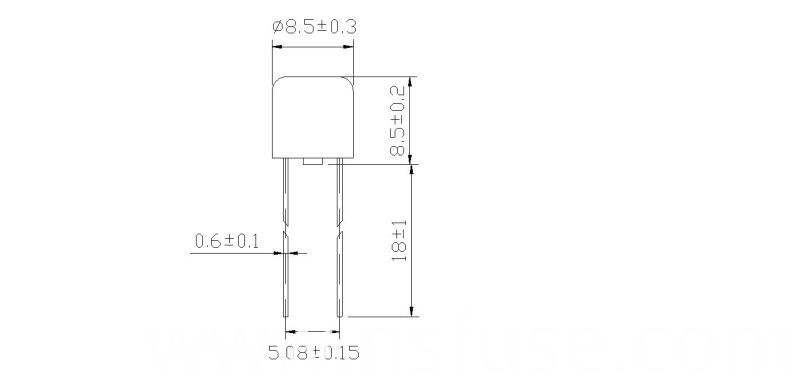

Unit:mm

Electrical characteristics
Model | Rated current (A) | Max Voltage drop (mV) | Max persistence Power consumption (W) |
RF2-8 | 500mA | 350 | 459 |
RF2-8 | 630mA | 320 | 529 |
RF2-8 | 800mA | 300 | 630 |
RF2-8 | 1A | 280 | 735 |
RF2-8 | 1.25A | 280 | 919 |
RF2-8 | 1.6A | 250 | 1050 |
RF2-8 | 2A | 240 | 1260 |
RF2-8 | 2.5A | 200 | 1313 |
RF2-8 | 3.15A | 180 | 1488 |
RF2-8 | 4A | 160 | 1680 |
RF2-8 | 5A | 150 | 1969 |
Current characteristics
Rated | Blowing time | |
2.1In | Max | 30min |
2.75 In | Min | 10ms |
Max | 3s | |
4 In | Min | 3ms |
Max | 300ms | |
10 In | Max | 20ms |
Rated breaking capacity
35A or 10In whichever is greater

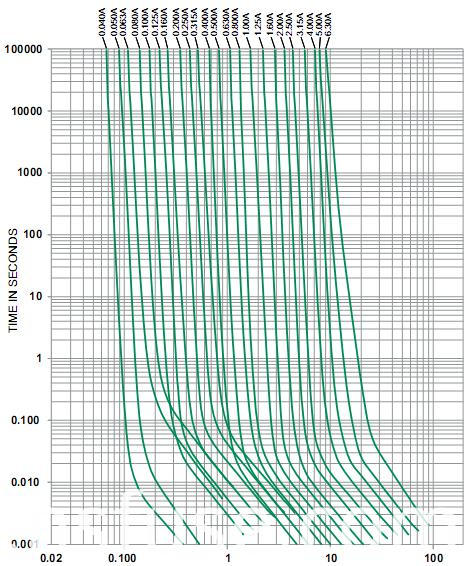

RF2-8 Current-time curve

Current(A)
Contact us if you need more details on Micro Fuse Types. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Fast Blow Fuse、Little Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
