Micro Fuse 3*10 Ceramic Tube Fast-Acting 219 Series

Model NO.: 219 Series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: UL Specification: 3.6x10 mm HS Code: 85361000 This type of fuses belong to small or micro varieties, and it has the main feature of small size, thus suitable for the circuit board installation with small space, The main ampere is also relatively small, usually 10A or under. The fuse is mainly used in a variety of precision power, audio and video controller, monitor, medical equipment, etc. The fuses have American Standard UR certification and Canadian CSA certification. The main index of UL current characteristics is rated test, one is 100% of the rated current, and the other is 200% of the rated current.
Unit:mm




Current characteristics

Rated	Blowing time
	Quick-acting	Time-lag
100%	4 hour Min
200%	60sec Max	1~60sec



Rated breaking capacity
50 amperes at 125V AC(500mA~5A)
50 amperes at 250V AC(500mA~5A)


Certification

Model	Certification	Certification number	Current range
218  219	UR	JDYX2.E171685	100mA-5A
218  219	CSA	JDYX8.E171685	100mA-5A

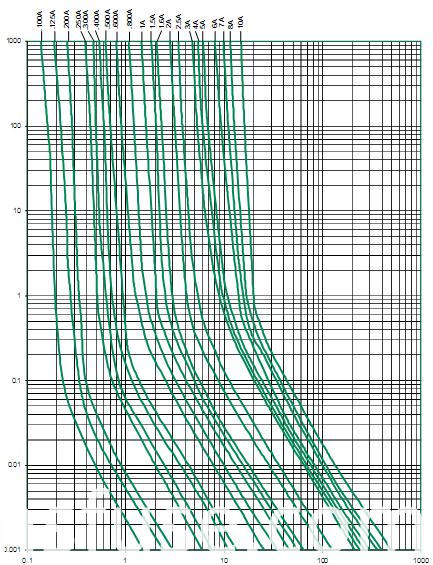

 218 (Ceramic tube)Current-time curve


                                           Current(A)


Contact us if you need more details on 100mA Fast-Acting Micro Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 200mA Fast Blow Subminiature Fuse、1 AMP Fast-Acting Subminiature Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
