Micro Fuse Glass Tube Fast-Acting UR Certificate
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: 228 229 series
Product Description
Model NO.: 228 229 series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: UL Specification: 4.5x15 mm HS Code: 85361000 228 229 series
228 229 series glass tube fast-acting fuses are used in a variety of lighting rectifier circuit board and medical equipments, and achieved UR certification, the certification number is JDYX2.E171685, the current range is 400mA-3A, the products comply with UL248-1 UL248-14 standards, superior performance, and stable and reliable quality have won praises from customers both home and abroad. There is not any quality accident for many years, which is attributed to strict management ranging from the design to the test of the products.

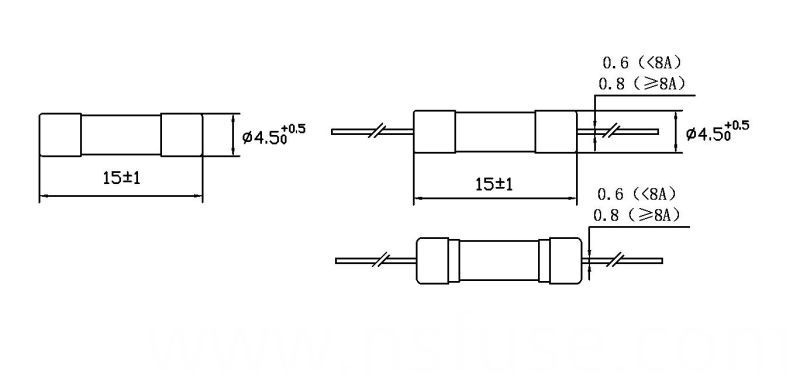

Unit:mm
228 229 Current characteristics
228 229 Rated breaking capacity
35 amperes at 250V AC(400mA~1A)
100 amperes at 250V AC(1.25A~2.5A)
100 amperes at 300V AC/3A
Certification

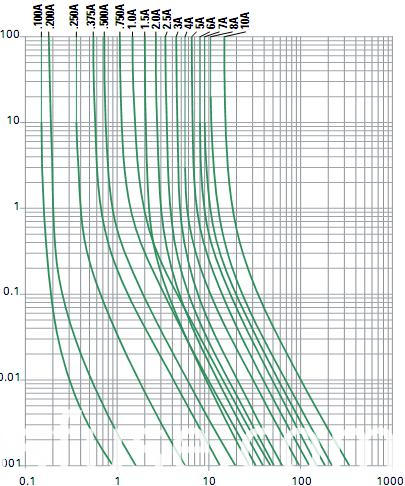

228 229 Current-time curve
Current(A)
Contact us if you need more details on 1.25 AMP Fast-Acting Micro Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 2.5 AMP Fast Blow Micro Fuse、3.15 AMP Micro Fuse Fast Blow. If these products fail to match your need, please contact us and we would like to provide relevant information.
228 229 series glass tube fast-acting fuses are used in a variety of lighting rectifier circuit board and medical equipments, and achieved UR certification, the certification number is JDYX2.E171685, the current range is 400mA-3A, the products comply with UL248-1 UL248-14 standards, superior performance, and stable and reliable quality have won praises from customers both home and abroad. There is not any quality accident for many years, which is attributed to strict management ranging from the design to the test of the products.
Unit:mm
228 229 Current characteristics
| Rated | Blowing time |
| 100% | 4 hour Min |
| 135% | 1 hour Max |
| 200% | 1 s Max |
228 229 Rated breaking capacity
35 amperes at 250V AC(400mA~1A)
100 amperes at 250V AC(1.25A~2.5A)
100 amperes at 300V AC/3A
Certification
| Model | Certification | Certification number | Current range |
| 228 | UR | JDYX2.E171685 | 400mA-3A |
| 229 | UR | JDYX2.E171685 | 400mA-2.5A |
| 228 | CSA | JDYX8.E171685 | 400mA-3A |
| 229 | CSA | JDYX8.E171685 | 400mA-2.5A |
228 229 Current-time curve
Current(A)
Contact us if you need more details on 1.25 AMP Fast-Acting Micro Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 2.5 AMP Fast Blow Micro Fuse、3.15 AMP Micro Fuse Fast Blow. If these products fail to match your need, please contact us and we would like to provide relevant information.
