2016 High Quality Buzzer 24V/Piezo Buzzer for Home Appliances

Basic Info

Model No.:  Piezo Buzzer

Product Description

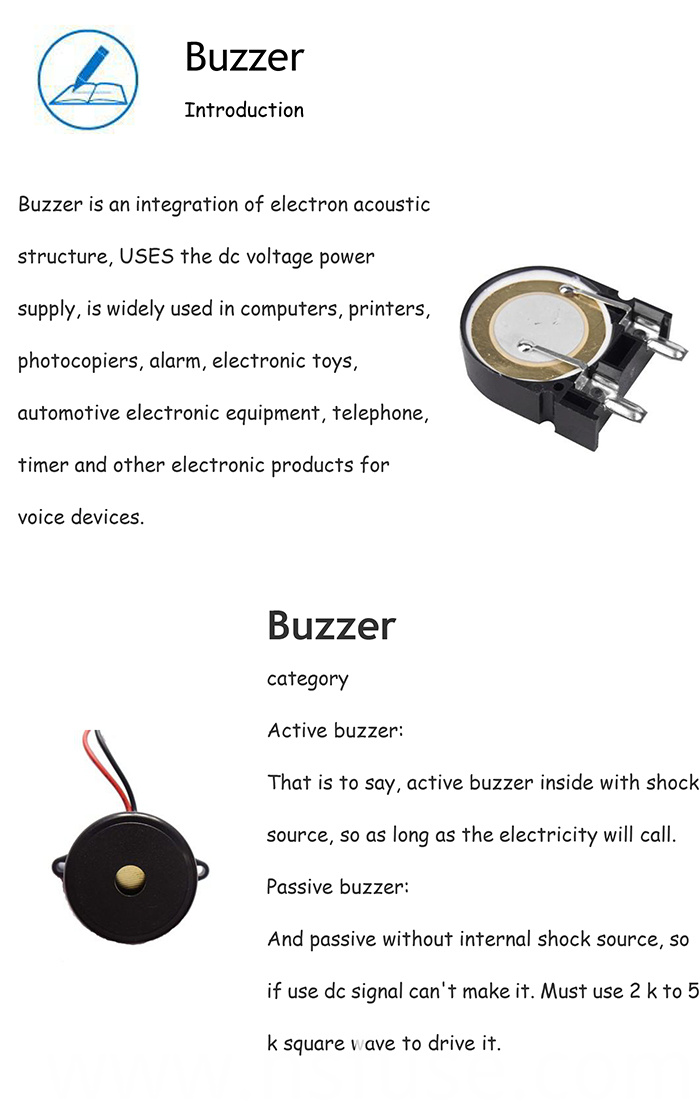

Model NO.: Piezo Buzzer Transmission Mode: Air-conduction Transducer Principle: Piezoelectric Earphone Radiation Mode: Indirect Radiation Type WORD nChannels: 7.1Channel Rated Voltage: 5V Max.Current Consumption: 30mA Min. Sound Output at 10cm: 85dB Storage Temperature: -30~+80ºC Diameter: 10mm~53mm Trademark: Xuhai Origin: Guangdong, China (Mainland) Category: Buzzer Cone: Paper Cone Style: Mini Usage: Accept Certification: ISO9001 Operating Voltage: 4-7V Resonant Frequency: 2300Hz±300 Operating Temperature: -20~+70ºC Housing Material: PPO Color: Black Specification: Mulit Dimensions Buzzer Characteristics: Buzzer is divided into magnetic buzzer and piezoelectric buzzer two kinds.
Magnetic buzzer for conductive coil vibration pronunciation, characteristics of small volume;
Piezoelectric buzzer for piezoelectric ceramic chip pronunciation, characteristic, current is small. ELECTRICAL SPECIFICATIONS:
Customer: Part No:
Product: Magnetic Buzzers SWT Part No: 275+2305PF
Technical Terms
Rated Voltage (VDC) 5
Operating Voltage (VDC) 4~7
Max.Current Consumption (mA) 30
Min. Sound Output at 10cm(dB 85
Resonant Frequency (HZ) 2300±300
Operating Temperature (ºC) -20~+70
Storage Temperature (ºC -30~+80
Weight (g) 2.0
Housing Materia PPO
Buzzer Soldering process Soldering  Parameter
Temp.( ºC ) Time(Sec.) Times
Lead Free Reflow soldering 245±15 above  180ºC time 40~70 3
Wave soldering 255±5 4~8 2~3
Manual soldering 350±10 1~3 2~3

2016 High Quality Buzzer 24V/Piezo Buzzer for Home Appliances
2016 High Quality Buzzer 24V/Piezo Buzzer for Home Appliances

2016 High Quality Buzzer 24V/Piezo Buzzer for Home Appliances

Contact us if you need more details on Buzzer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Piezo Buzzer、Buzzer for Home Appliances. If these products fail to match your need, please contact us and we would like to provide relevant information.
