Top Sell and High Quality with RoHS High Voltage Choke Coil Inductor

    Payment Type: T/T
    Min. Order: 1000
    Productivity: 500000 Piece/Pieces Per Month
    Place of Origin:  Guangdong, China (Mainland)
    Supply Ability: 500000 Piece/Pieces Per Month
    Certificate: ISO9001, RoHS
  • Mr. Catherine Zhou

Basic Info

Model No.:  Xuhai117

Product Description

Model NO.: Xuhai117 Structure: Inductive Choke Structure of Winding: Multilayer Coil Structure of Magnetizer: Ferrite Coil Packaging Form: Epoxy Resin Inductance Inductor Value: Variable Inductor Shape: Round Inductance: Support Custom Color: Yellow Wire: Excellent Choke Inductor Copper Thickness: 2mm Specification: General Size Type: Choke Inductor Working Frequency: High Frequency Nature of Operation: Choke Coil Range of Application: Choke Brand: Sunlord Application: Circuit Board Material: Copper Wire Certification: ISO9001, RoHS Shipping: DHL UPS FedEx EMS Packing: Carton Box Trademark: Xuhai Origin: Guangdong, China (Mainland) Characteristics: It is made by pressing alloy powder of 85% iron,9% silicon and 6% aluminum into magnetic powder core in ring shape or E shape by means of special technical process. In market, it is called Kool Mμor Sendust magnetic powder core.  Iron,silicon and aluminum magnetic coil can work in frequency of around 8KHz.It is provided with a saturation magnetic induction intensity of around 1.05T, a magnetoconductivity from 26 to 125 and a magnetostriction coefficient of nearly 0. No noise when working in different frequency. It has a higher DC bias power ability than MPP. Thus it has the best costeffectiveness.
  ELECTRICAL SPECIFICATIONS:
Model XuHai431 Choke coil
Operation frequency 8KHz-1MHz
Output power 0.05 to 3000 W
Working temperature -40ºC to +200ºC
Storage temperature  -25ºC to +85ºC
Storage humidity 30 to 95%
Remark

The popular bobbin style is shown as the above.
Other special styles are not listed. Our company can make iron silicon

and aluminum magnetic coils with different specifications and size according
to client's requirement.Welcome to inquire.

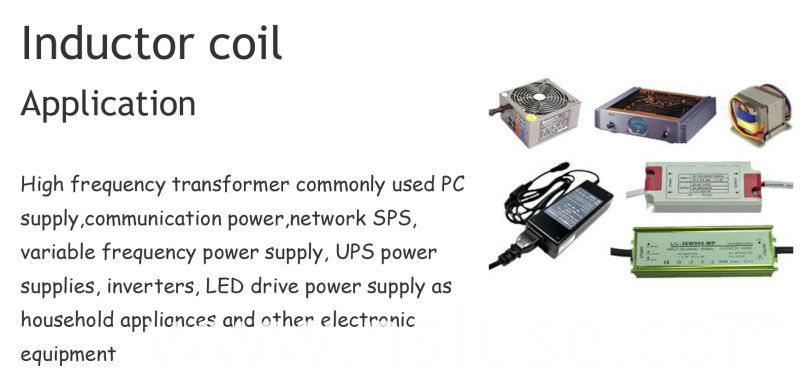

Application

Iron,silicon and aluminum magnetic coil is applied to alternative transformers,
output Choke coils,line filters and PFC circuit.
Sometimes it is used as a Transformer core to substitute the air gap ferrite.

Price

Its unit price is from USD1.0 to 10/pcs FOB shenzhen.
The price depends on technical complexity, clients' requirement for material and safety certificates.
