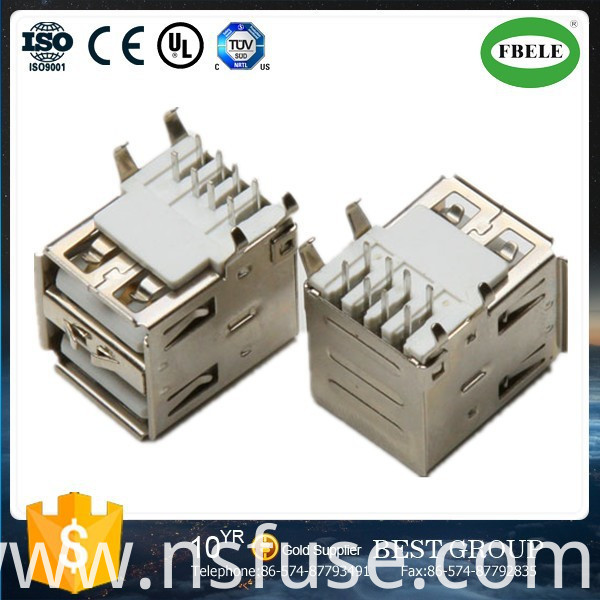

Fbusba2-115b Waterproof USB Connector Part (FBELE)

Basic Info

Model No.:  FBUSBA2-115B

Product Description

Model NO.: FBUSBA2-115B Installation Mode: Rotary Jack Interface Type: USB Production Process: Welding Working Frequency: Low Frequency Cards Support: Dual Card Trademark: FBELE Origin: Ningbo Application: Mobile Phone, PCB, Integrated IC, Cable, Computer, Communication, Battery Type: SD Jack Shape: Bar Customized: Customized Feature: Moistureproof Current Rating: 1.5A Specification: ROHS HS Code: 85318090 FBUSBA2-115B waterproof usb connector part (FBELE)
Material :
Housing: LCP UL94V-0
Contacts: Phosphor Bronze
Pin Plated: Gold 3u" over 50u" nickel



Electrical :
Current Rating: 1.5A
Contact Resistance: 30MΩ Max.
Insulation Resistance: 1000MΩ Min. at 500 VDC
Dielectric Withstanding Voltage: 500 VAC / Min.
Operating Temperature: -550C~+1050C


Fbusba2-115b Waterproof USB Connector Part (FBELE)

FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.

Contact us if you need more details on USB. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Waterproof USB Connector、USB Connector Part. If these products fail to match your need, please contact us and we would like to provide relevant information.
