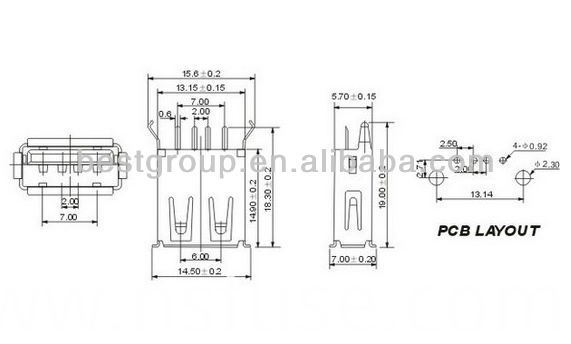

Fbusba2-113 Dual USB Connector USB Front Connector (FBELE)

Basic Info

Model No.:  FBUSBA2-113

Product Description

Model NO.: FBUSBA2-113 Certification: CE, UL, UR Contact Resistance: 30m Ohm Max Trademark: FBELE Origin: Ningbo Type: USB Microscope Current Rating: 1.5A Insulation Resistance: 1000m Ohm Min. at 500 VDC Specification: ROHS HS Code: 85318090 FBUSBA2-113  dual USB Connector usb front connector (FBELE)
Material :
Housing: LCP UL94V-0
Contacts: Phosphor Bronze
Pin Plated: Gold 3u" over 50u" nickel



Electrical :
Current Rating: 1.5A
Contact Resistance: 30MΩ Max.
Insulation Resistance: 1000MΩ Min. at 500 VDC
Dielectric Withstanding Voltage: 500 VAC / Min.
Operating Temperature: -550C~+1050C
Fbusba2-113 Dual USB Connector USB Front Connector (FBELE)
FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.

Contact us if you need more details on USB. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Dual USB Connector、USB Front Panel Connector. If these products fail to match your need, please contact us and we would like to provide relevant information.
