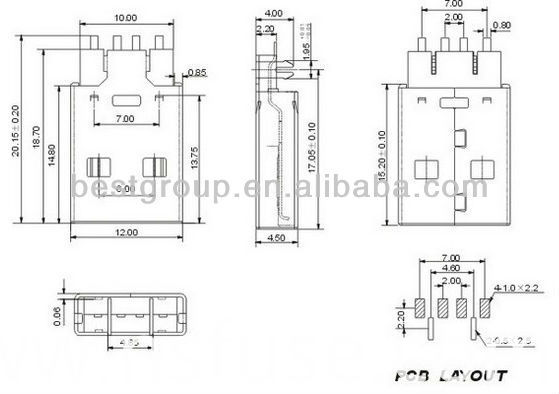

Fbusba1-112 5 Pin USB Connector USB Disk (FBELE)

    Payment Type: L/C, T/T, D/P, Paypal
    Min. Order: 100
    Productivity: 5000PCS/Day
    Place of Origin:  Ningbo
    Supply Ability: 5000PCS/Day
  • Mr. Catherine Zhou

Basic Info

Model No.:  FBUSBA1-112

Product Description

Model NO.: FBUSBA1-112 Interface Type: USB 2.0 Material: Aluminum USB Type: Mobile USB Disk Function: Storage USB Disk Dielectric Withstanding Voltage: 500 VAC / Min. Trademark: FBELE Origin: Ningbo Storage Capacity: 2-4G Shape: Bracelet Open Style: Sliding Color: White Security Check: Not Support Security Check Current Rating: 1.5A Specification: ROHS HS Code: 85318090 FBUSBA1-112 5 pin usb connector usb disk(FBELE)
Material :
Housing: LCP UL94V-0
Contacts: Phosphor Bronze
Pin Plated: Gold 3u" over 50u" nickel



Electrical :
Current Rating: 1.5A
Contact Resistance: 30MΩ Max.
Insulation Resistance: 1000MΩ Min. at 500 VDC
Dielectric Withstanding Voltage: 500 VAC / Min.
Operating Temperature: -550C~+1050C
Fbusba1-112 5 Pin USB Connector USB Disk (FBELE)
FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.
  • Best Selling SMT Micro USB B 5 Pin Female Connector

    Model NO.: E07 Shape: Rectangular Interface Type: Female Connector Certification: RoHS Brand: Xyfw Life: 5000 Cycles Operatioin Temperature: -55~125ºC Contact Resistance: 30mΩ Trademark: XYFW Transport Package: Tray or Reel Specification: PBT black or white Origin: China HS Code: 8536901100 Best selling smt micro usb b 5...

  • 8-Pin Braided Rope USB Sync Data Charger Cable

    Model NO.: NM-USB-269 Od: 3.25mm Connector Color: Nickel Shieldig: Braid Gender: Male to 8pin Trademark: NanMing Specification: CE SGS Origin: Guangdong Shenzhen HS Code: 8544421900 8-pin Braided Rope USB Sync Data Charger cableSpecifications: The fabric braid coird USB male to 8 pin cable for iPhone 5 enables you to...

  • Micro USB 3.0 Connector

    Application: Mobile Phone, PCB, Integrated IC, Computer, Communication, Car Specification: RoHS HS Code: 8536900000 Trademark: Antenk Origin: China Micro USB 3.0 Connector with Phosphor Bronze ContactSpecifications:Current rate: 1.5AInsulation resistance: 1, 000MΩ MinimumContact...

  • Global Braided Rope 8 Pin to USB Charger and Data Syncing Cable

    Model NO.: NM-USB-301 Charging Function: Charging&Data Transfer IC Chip: Without IC Chip Customized: Customized Color: Colorful Od: 3.4mm Connector Color: Nickel Shieldig: Braid Gender: Male to Male Length: 1m, 2m, 3m or Custom Made Trademark: NanMing Transport Package: PE Bag, Polybag Specification: 26awg+28awg Origin:...

Contact us if you need more details on USB. We are ready to answer your questions on packaging, logistics, certification or any other aspects about USB Flash Drive Parts、5 Pin USB Connector. If these products fail to match your need, please contact us and we would like to provide relevant information.
