Fbuls1007PS Hot Sale 10mm 40kHz Piezoelectric Ultrasonic Sensor (FBELE)

Basic Info

Model No.:  FBULS1007PS

Product Description

Model NO.: FBULS1007PS Contact: Contactless Production Process: Injection Material: Stainless Steel Certification: OIML Frequance(kHz): 40 Specification: ROHS HS Code: 85318090 Type: Float Output Signal Type: Switching Type Feature: SemiConductor IP Rating: IP65 Customized: Non-Customized Trademark: FBELE Origin: Ningbo
Fbuls1007PS Hot Sale 10mm 40kHz Piezoelectric Ultrasonic Sensor (FBELE)
FBULS1007PS hot sale 10mm 40KHz piezoelectric Ultrasonic Sensor (FBELE)

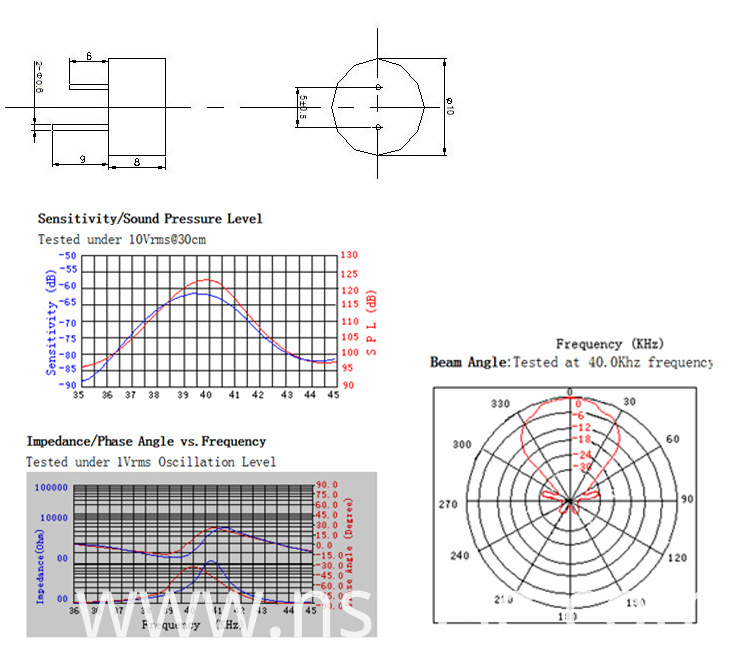

Center Frequency:40.0±1.0Khz
Bandwidt(-6dB)  F.O.M.:1.2Khz
Transmitting sound Pressure Level:120dB min.
Receiving Sensitivity:-63dB min.
Nominal Impedance(Ohm):900
Ringing:1.5ms max.
Capacitance:2100pF
Max.Driving Voltage:120Vp-p
Total Beam Angle   -6dB  :  50°±10°
Operation Temperature:-30to80ºC
Storage Temperature: -40to85ºC

Contact us if you need more details on Ultrasonic Sensor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ultrasonic Sensor、Ultrasonic Sensor. If these products fail to match your need, please contact us and we would like to provide relevant information.
