2016 Hot Sell with RoHS High Frequency Transformer

    Payment Type: T/T
    Min. Order: 1000
    Productivity: 500000 Piece/Pieces Per Month
    Place of Origin:  Guangdong, China (Mainland)
    Supply Ability: 500000 Piece/Pieces Per Month
    Certificate: ISO9001
  • Mr. Catherine Zhou

Basic Info

Model No.:  xuhai

Product Description

Model NO.: xuhai Phase: Single Cooling Method: Dry-type Transformer Certification: ISO9001 Frequency Characteristics: High Frequency Brand: FUJI Frequency: 1k.Hz-200k.Hz Operation Temperature: -40ºC to +180ºC Input Voltage: 200V/220/240/380V/400V Service: OEM Color: Yellow Transport Package: Box Packaging(50cm*32cm*32cm) Origin: Guangdong, China (Mainland) Application: Power, Electronic, Rectifier Coil: Core-type Transformer Winding Type: Auto-transformer Usage: Rectifier Transformer Shape of Coil: EE Coil Structure: Toroidal Storage Temperature: -25ºC to +85ºC Output Power: 0.5 to 10 W Winding Material: Copper 100% Shipping: DHL UPS FedEx EMS Trademark: Xuhai Specification: Customized Size Toroidal transformer,electronic transformer,small electrical transformer ee high frequency transformer KEY FEATURES: A. Operation frequency: 20kHz-500KHz
B. Output power: 10 to 1000 W
C. Working temperature: -40ºC to +180ºC
D. Storage temperature: -25ºC to +85ºC
E. Storage humidity: 30 to 95 2016 Hot Sell with RoHS High Frequency Transformer
SPECIFICATIONS:
Item Type Shape Array pitch(MM) Needle pitch(MM) Pin diameter(MM) Pin length±0.2MM
1 EE10 Horizontal 10.5 2.5 0.6 3.0
2 EE10 Vertical 8.0 2.5 0.5 4.0/5.0
3 EE12 Vertical 7.2 2.5 0.6 3.8
4 EE12 Vertical 8.5 2.5 0.6 4.0
5 EE13 Horizontal 10.0 2.5 0.6 3.5/4.0
6 EE13 Vertical 8.5 2.5 0.6 4.0
7 EE13 widen Horizontal 15.5 2.5-3.0 0.6 3.5
8 EE16 widen Horizontal 15.5 3.25 0.7 3.7
9 EE16 Horizontal 13.0 2.5 0.6 4.0
10 EE16 Horizontal 11.0 3.0 0.6 4.0
11 EE16 Vertical 9.0 3.0 0.6 4.7
12 EE16 Vertical 10.5 3.2 0.6 3.7
13 EE19 Horizontal 12.5 3.0 0.7 4.0
14 EE19 Vertical 11.0 5.0 0.7 5.0
15 EE19 Vertical 11.0 4.0 0.7 4.1
16 EE22 Vertical 10.1 4.0 0.8 3.6
17 EE25 Vertical 12.0 5.0 0.8 4.5
18 EE28 Vertical 17.5 5.0 0.8 4.0
19 EED20 Horizontal 17.5 5.0 0.7

4.0

20 EED25 Horizontal 22.5 5.0 0.7 4.8
21 EF20 Horizontal 15.0 5.0 0.6 4.0

2016 Hot Sell with RoHS High Frequency Transformer

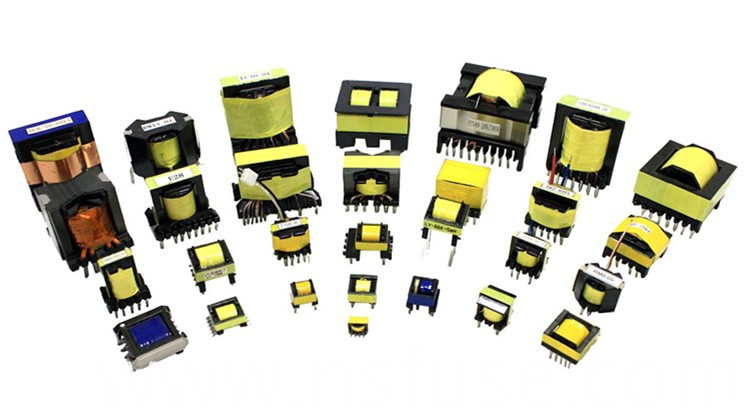

  2016 Hot Sell with RoHS High Frequency Transformer

Contact us if you need more details on Transformer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Electrical Transformer、High Voltage Electrical Transformer. If these products fail to match your need, please contact us and we would like to provide relevant information.
