Basic Info

Model No.:  RH-D-SERIES

Product Description

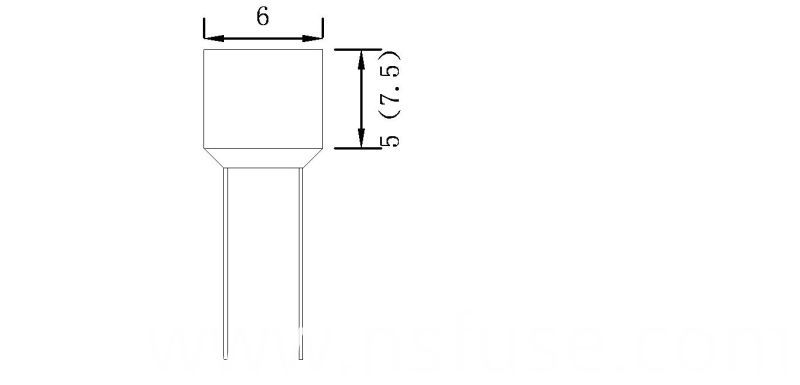

Model NO.: RH-D-SERIES Type: Temperature Fuse Shape: Insert Standard: TUV Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Device: Pop-up Solid Trademark: songshan HS Code: 85361000 RH-D also known as solid Thermal Fuse, rated action temperature from 100ºC to 150ºC, the temperature difference of fusing temperature is within 5ºC. It is suitable for environments sensitive to ambient temperature. Due to the airtight structure, the impact and change by aging is very small and thus it has a high action temperature. It can maintain the temperature far below the rated action temperature and the maximum limit temperature is far above the rated action temperature when it works. It is suitable for a variety of small or medium sized appliances and can play a role in over temperature fusing to protect electric appliances. This fuse has been certified by the German TUV.

TYPE SHAPE RATED
FUNCTIONING
TEMP(Tf-10K)
FUSING-OFF
TEMP
(ºC)
HOLDING
TEMP
(TC0 -6ºC)
MAXTEMP
LIMIT
(Tm0 -5ºC)TH
RATED
CURRENT
(A)
RATED
VOLTAGE
(V)
RH D6 102 98±2 77 180 2 250
RH D8 115 112±2 86 180 2 250
RH D9 125 121±2 98 180 3 250
RH D2 130 126±2 102 180 2.5 250
RH D1 135 133±2 106 180 2 250
RH D3 150 146±2 120 180 2.5 250



Thermal Fuse TUV Certificate
