Home > Products > Speaker > Inner Magnetic Mylar Speaker 23mm Speaker Mylar Speaker

Inner Magnetic Mylar Speaker 23mm Speaker Mylar Speaker

Basic Info

Model No.:  FB23AW-2

Product Description

Model NO.: FB23AW-2 Amplification Type: Passive Usage: Mobile Phone, Portable Player, Computer, Home Theatre System Sound Channel: 7.1 Color: Black Compatible Product: Universal Magnet Size (mm): 11mm Height: 3.8 Trademark: FBELE Origin: Ningbo Type: Bluetooth Wireless Speaker Speaker Material: Metal Interface: RJ-45,RJ-11 SNR: 81-90dB Special Function: With Remote Control Resonant Frequency (Fo): 730±20%Hz at 1V. Diameter: 23mm Mylar Speaker: 23mm Mylar Speaker Specification: ROHS HS Code: 85318090
FB23AW-2 2015 New 23mm inner Magnetic mylar speaker with wire (FBELE)

Rated Impedance (Ω±15%)
8±15% ohm(at 2KHz,1 V)
Rated Power (W) 1.0W
Resonant Frequency (fo) 730±20%Hz at 1V.
RATED INPUT POWER (CONTINUUM) 0.5W
TOTAL HARMONIC DISTORTION Less than 5% at 1KHz,0.1W/0.1M
FREQUENCY RANGE Fo~5 k Hz

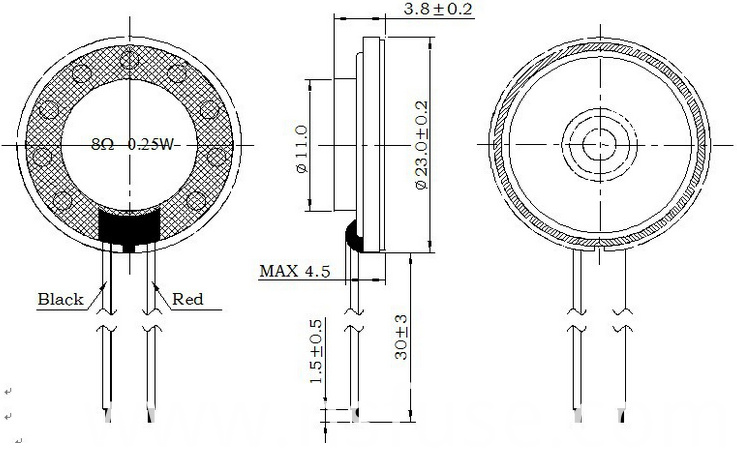

Magnet Size (mm)   11mm
Diameter   23mm
Height 3.8
mylar speaker 23mm mylar speaker
Inner Magnetic Mylar Speaker 23mm Speaker Mylar Speaker

FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.
Fast is our principle, our normal delivery time as below:
Sample delivery date is: 1-3days.
Production delivery time: 7-10days.
New product development: 15-20days

Our Company Advantage:
1, Reliability production
2, Famouse Brand "FBELE", Best Reputation
3, well experienced R&D engineer
4, Effective working Team
5, Aggressive Price
6, Constant New Products
Don't hesitate, E-mail us immediately now.
you will get your best solution.

Contact us if you need more details on Speaker. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Bluetooth Speaker、Amplifier. If these products fail to match your need, please contact us and we would like to provide relevant information.
