SMD Fuse Fast-Acting Small Size
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: 0603 series
Product Description
Model NO.: 0603 series Type: Current Fuse Shape: SMD Fusing Device: Pop-up Solid Specification: 0.8x1.6 mm HS Code: 85361000 Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Trademark: songshan Origin: Shanghai, China 0603 series of fuse is fast SMD Fuse, with smaller size and lighter product quality, due to the small size, saving the space of a printed circuit board is applicable to all kinds of small-sized electronic products. The fuse is made of thin film, with low resistance, stable electrical properties and high reliability, and is adaptable to reflow and wave soldering. The fuse has fast response and is suitable for the circuit without instantaneous current surge. The product is mainly used in current protection, IC protection, mobile phone and other communication devices, display, digital camera, battery etc.
Unit:mm
Current characteristics
Current characteristics

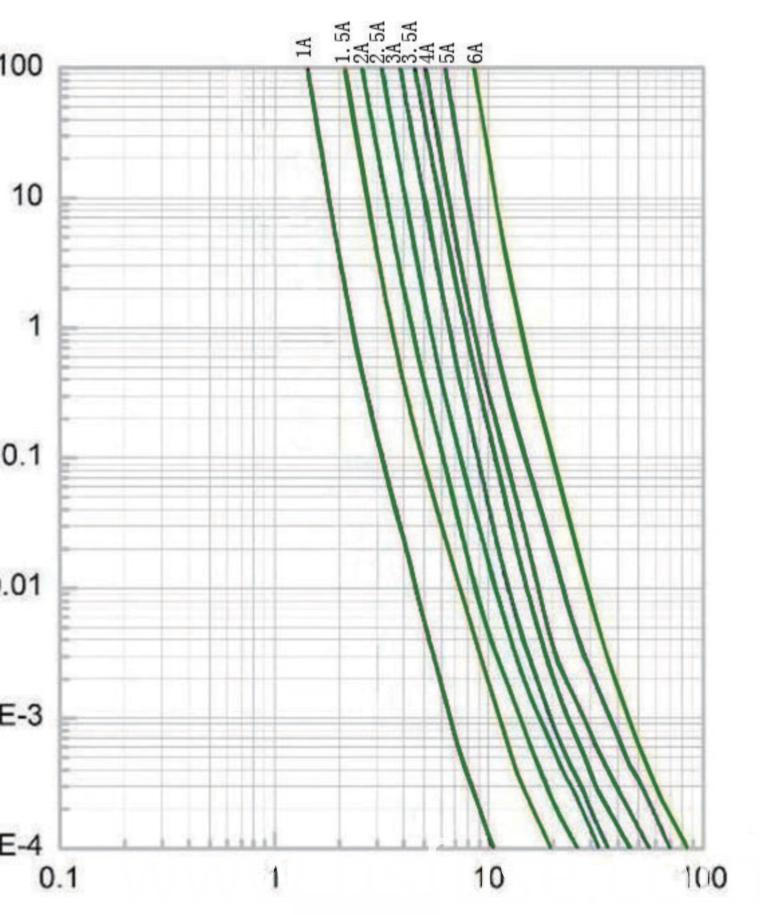

0603 series Current-time curve
Contact us if you need more details on 4 AMP Fast Blow SMD Fuses. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 5 AMP Fast Blow SMD Fuse、6 AMP Fast-Acting SMD Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.

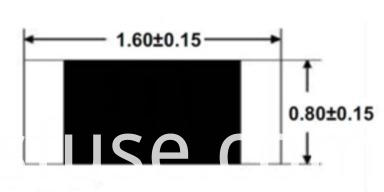

Unit:mm
Current characteristics
Model | Rated current (A) | Rated voltage (V) | Max Voltage drop (mV) | Breaking Ability (Aa.c) |
0603 | 1 | 32 | 300 | 50 |
0603 | 1.5 | 32 | 300 | 50 |
0603 | 2 | 32 | 300 | 50 |
0603 | 2.5 | 32 | 300 | 50 |
0603 | 3 | 32 | 300 | 50 |
0603 | 3.5 | 32 | 300 | 50 |
0603 | 4 | 32 | 300 | 40 |
0603 | 5 | 32 | 300 | 50 |
0603 | 6 | 32 | 300 | 60 |
Current characteristics
Rated | Blowing time |
100% | 4 hour Min |
250% | 5sec Max |
0603 series Current-time curve
Contact us if you need more details on 4 AMP Fast Blow SMD Fuses. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 5 AMP Fast Blow SMD Fuse、6 AMP Fast-Acting SMD Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
