Basic Info

Model No.:  217-1 series

Product Description

Model NO.: 217-1 series Type: Current Fuse Shape: SMD Fusing Device: Pop-up Solid Specification: 6.0x2.5 mm HS Code: 85361000 Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Trademark: songshan Origin: Shanghai, China 217-1  series
217-1 series of fuse is slow surface mount fuse-links, the overall quality of the product is smaller, assembly density is high and weight is light, its reliability and anti vibration capacity both achieved a higher level. The welding defects on both sides of the electrode are low, high frequency characteristics are good, and the interference of electromagnetic waves and radio frequency can be eliminated effectively. The product is applicable to implement full automation, thus production efficiency is higher, and materials, energy, equipment, manpower, time, etc can be saved. The fuse is suitable for electronic equipment and other substrate systems.

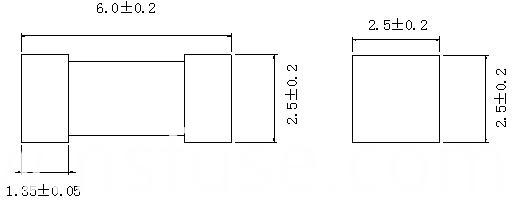

Unit:mm


SMD Fuse Slow Blow

Current characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
217-1 1A 125/250 300
217-1 1.25A 125/250 300
217-1 1.6A 125/250 300
217-1 2A 125/250 300
217-1 2.5A 125/250 300
217-1 3A 125/250 300
217-1 3.15A 125/250 300
217-1 3.5A 125 300
217-1 4A 125 300
217-1 5A 125 300



Current characteristics
Rated  Blowing time
217-1Time-lag
0.5A~5A
100% 4 hour Min
200% 120sec Max
1000% 10msec Min

Rated breaking capacity
100 amperes at 125V AC(1A~5A)
100 amperes at 125V DC (1A~5A)
35 amperes at 250V AC(1A~3.15A)
35amperes at 250V DC(1A~3.15A)

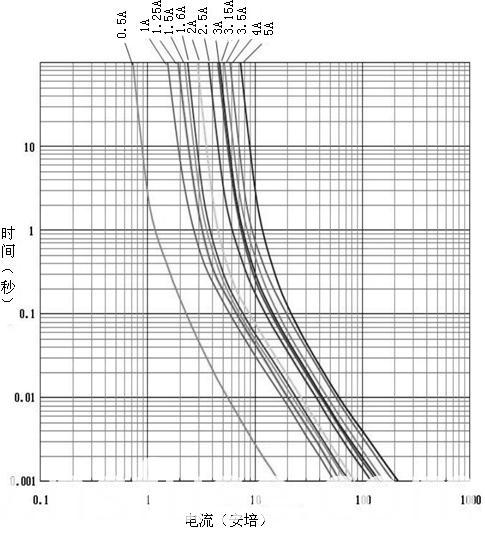

217-1 series Current-time curve


SMD Fuse Slow Blow
