PCB SMB Connector wire solder

PCB SMB Connector wire solder

    Unit Price: 0.6~1.59 USD
    Min. Order: 300 pcs
    Packaging: each piece in a PVC bag, 100pcs in an inner-box, 1000pcs in a carton
    Productivity: 50K pcs per week
    Brand: Honor
    Transportation: Express,Air
    Place of Origin: Mainland China
    Supply Ability: 10k + pcs+ per week
    Certificate: ISO9001
    HS Code: 85369090

Product Description


SMB rf male connector for PCB SMB straight connector rf coax connectors


1.SMB straight PCB connectors
2.SMB right angle PCB connectors
3.SMB PCB RF connectors for edge launch/through hole/surface mount

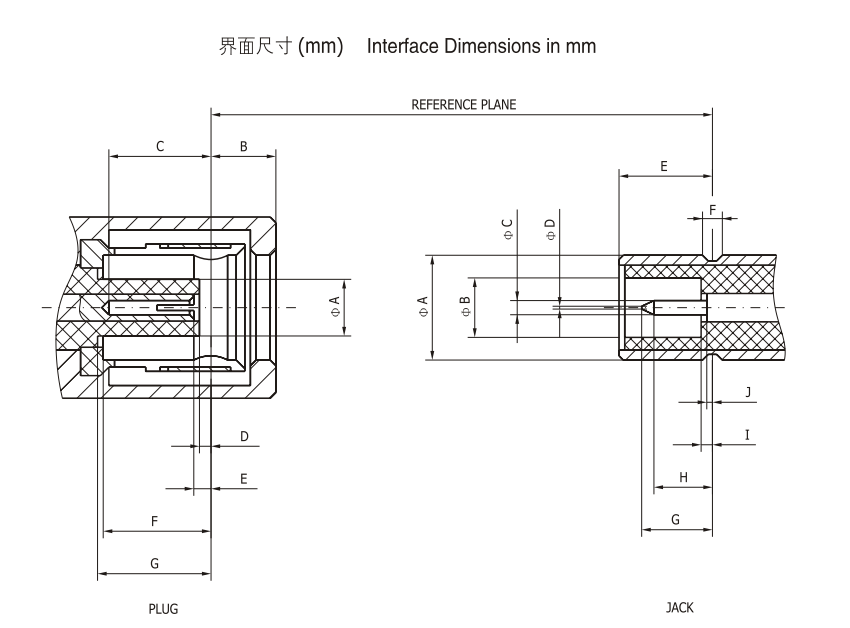

SMB interface
Products Specification:

XAHonor PCB mount SMB connectors are sub miniature high frequency connectors which designed to terminate to a variety of printed circuit boards, including SMB surface mount connector , SMB PCB-through hole connectors, 75 ohm SMB connector for PCB mount.SMB connectors PCB mount slide-on jack and plug allows board-to-board mounting with a low insertion force making this is ideal for mating plenty of connectors on a pair of print circuit board.


SMB PCB Mount Connectors



Part Number

Description

Gender

Maximum Frequency

Termination Style

Polarity

Orientation

Data Sheet

SMB-KHD4

SMB Straight PCB Plug50 Ohm

Plug(female)

4GHz

PCB-Through Hole

Standard

Straight

SMB-KWHD1

SMB Right Angle PCB Plug50 Ohm

Plug(female)

4GHz

PCB-Through Hole

Standard

Right Angle

SMB-75KHD

Mini SMB Straight PCB Plug75 Ohm

Plug(female)

2GHz

PCB-Through Hole

Standard

Straight

SMB-JHDT

SMB Straight PCB Jack50 Ohm

Jack(male)

4GHz

PCB-Surface mount

Standard

Straight

SMB-JWHD3

SMB Right Angle

PCB Jack 50 Ohm

Jack(male)

4GHz

PCB-Through Hole

Standard

Right Angle

SMBM-75JHD

Mini SMB Straight

PCB Jack 75 Ohm

Jack(male)

2GHz



SMB Cable Mount Connectors

Product range:
SMB straight cable jacks, SMB straight cable plugs, SMB right angle cable plugs,SMB straight bulkhead cable jacks, mini SMB straight cable jacks,mini SMB straight cable plugs,mini SMB straight bulkhead cable jacks, mini SMB right angle cable plugs.

SMB PCB Mount Connectors
Product range:
SMB straight PCB jacks, SMB straight PCB plugs, SMB right angle PCB jacks, SMB right angle PCB plugs, 75 ohm mini SMB straight PCB jacks, 75 ohm mini SMB straight PCB plugs .




rf connector gold plating


RF connector nickle plating


Q: What is the Minimum Order Quantity(MOQ)?
A: Normally, MOQ is 300pcs, but special requirements can be accepted.

Q: How much do I need to pay for your OEM service?
A: No need to pay extra cost for our OEM service if order quantity over 300 pcs. The OEM cost includes in the unit price.

Q: What is the lead time?(How long do you need me to prepare my goods?)
A: 7-10 days for sample orders, 15-18 days for mass production orders (based on different quantities, OEM , etc.)

Q: How will you deliver goods to me?
A: We ship by air and international express. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.

Q: How long do I need to wait before my goods arrive?
A: 5-7 days for air transportation, 4-6 days for international express.

Q: How is your product quality?
A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. KNT always care what you care!

Q: What is your warranty?
A: Our warranty is 12 months after delivery, KNT pays high attention to after-sales service.
