Microwave Oven Fuse Fast-Acting TUV Certificate

Basic Info

Model No.:  GERF-IV series

Product Description

Model NO.: GERF-IV series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan HS Code: 85351000 Breaking Capacity: Low Usaga: High Voltage Fusing Speed: F Standard: VDE Origin: Shanghai, China GERF-IV series
GERF-IV series high-voltage fuses, made of special shell materials, is a newly designed and developed product in recent years for microwave ovens specially. The product already achieved TUV certification No. J5009962-0004 in accordance with IEC60127-II standards. The product went through rigid tests and its performance proves to be remarkable in all aspects. The fuse as a new product has won countless honors for the company by providing strong stability and reliability to the customers.

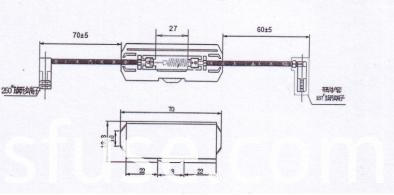

Unit:mm
Microwave Oven Fuse Fast-Acting TUV Certificate


Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(kV)
Max
Voltage drop
(mV)
GERF1-IV 550mA 5 2000
GERF1-IV 600mA 5 1800
GERF1-IV 630mA 5 1800
GERF1-IV 650mA 5 1800
GERF1-IV 700mA 5 1800
GERF1-IV 750mA 5 1800
GERF1-IV 800mA 5 1500
GERF1-IV 850mA 5 1500
GERF1-IV 900mA 5 1500
GERF1-IV 950mA 5 1500
GERF1-IV 1A 5 500
GERF1-IV 1.25A 5 400

Current characteristics
Rated  Blowing time
1.5In Min 30s
Max 300s
2.0In Max 20s
2.75
In
Min 20ms
Max 1500ms
4 In Min 8ms
Max 400ms
10 In Max 80ms



Withstand electricity strength
a)High pressure components shall be tested between the lead wire and shell ( the size and method is specified in a figure),requested under the action of 8KV/1min,and shall be no breakthrough and flying arc; The tested leak current is specified as 5mA.
b) After the High pressure components is fused, under the action of 8KV/1min between 2 lead wires, it shall be no breakthrough and flying arc, the tested leak current is specified as 5mA.

Certification
Model Certification Certification number Current range
GERF-IV TUV J50099362-008 550mA-1.25A

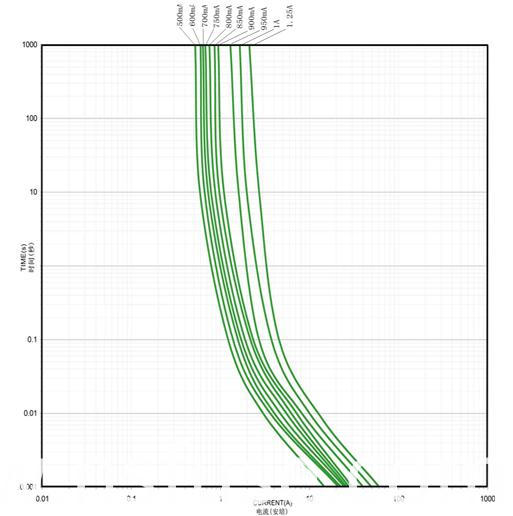

GERF1-IV Current-time curve

Microwave Oven Fuse Fast-Acting TUV Certificate
