Microwave Oven Fuse Glass Tube Fast-Acting Rated Voltage 5kV

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  GERF1-40

Product Description

Model NO.: GERF1-40 Type: Current Fuse Shape: Insert Standard: TUV Specification: 6.5x40 mm HS Code: 85351000 Breaking Capacity: Low Usaga: High Voltage Fusing Speed: F Trademark: Songshans Origin: Shanghai, China GERF1-40 series glass tube high-voltage fuse without lead is designed and developed by Shanghai Songshan Electronics Co., Ltd. itself for supporting the use in microwave oven. The product has achieved TUV certification, in compliance with the IEC60127-II standard, the certification number is J5009962-0004. Products into the market for 20 years won the trust of customers, the microwave ovens equipped with the fuse are exported to all over the world, and the quality of the fuse is stable and reliable. Adhere to strict production process, good process control; adhere to strict control, with advanced testing equipment.

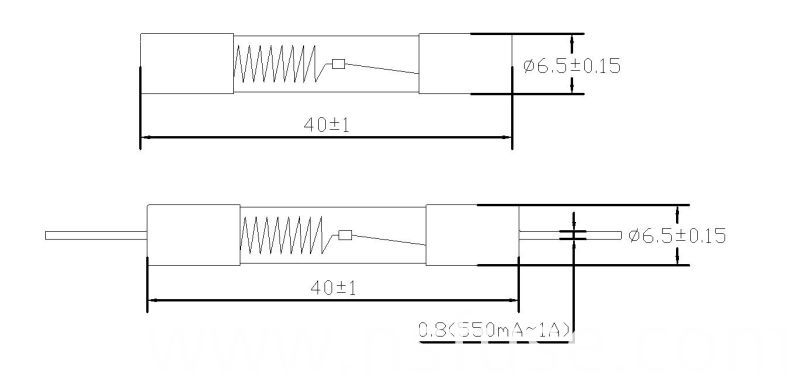

Unit:mm
Microwave Oven Fuse Glass Tube Fast-Acting Rated Voltage 5kV
Electrical characteristics
   Model Rated current
(A)
Rated voltage
(kV)
Max
Voltage drop
(mV)
GERF1-40 500mA 5 2000
GERF1-40 550mA 5 2000
GERF1-40 600mA 5 1800
GERF1-40 630mA 5 1800
GERF1-40 650mA 5 1800
GERF1-40 700mA 5 1800
GERF1-40 750mA 5 1800
GERF1-40 800mA 5 1500
GERF1-40 850mA 5 1500
GERF1-40 900mA 5 1500
GERF1-40 950mA 5 1500
GERF1-40 1000mA 5 500
GERF1-40 1250mA 5 400

Current characteristics
Rated  Blowing time
1.5In Min 30s
Max 300s
2.0In Max 20s
2.75
In
Min 20ms
Max 1500ms
4 In Min 8ms
Max 400ms
10 In Max 80ms


Rated Breaking Capacity
35A or 10In whichever is greater

Certification
Model Certification Certification number Current range
GERF1-40 TUV J5009962-0004 500mA-1250mA

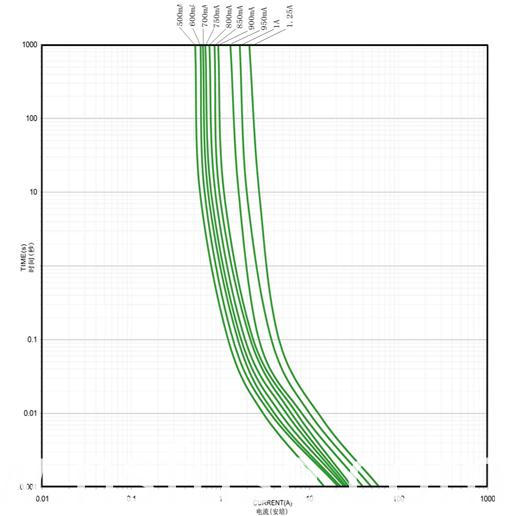

Current-time curve

Microwave Oven Fuse Glass Tube Fast-Acting Rated Voltage 5kV




Contact us if you need more details on 500mA High Voltage Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 600mA High Voltage Fuse、700mA High Voltage Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
