Micro Fuse 3*10 Glass Tube Fuse Fast-Acting 219/219-1 Series Glass Tube

Basic Info

Model No.:  219 219-1

Product Description

Model NO.: 219 219-1 Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: VDE Specification: 3.6x10 mm HS Code: 85361000  219 / 219-1 series(Glass tube)
This type of product is divided into fast and slow small fuse with size 3.6 x 10 mm, the volume of the fuses is small, thus the fuse is suitable for all kinds of small space circuit board. This fuse conforms to the IEC60127-III standard. Canada mainly has the CSA certificate, that is, the requirements of every country are not the same, mainly based on their various aspects of requirements, and then a unified standard is formulated.

Unit:mm



Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
219-1 1A 250 140 500
219-1 1.25A 250 130 600
219-1 1.6A 250 120 730
219-1 2A 250 100 870
219-1 2.5A 250 100 1000
219-1 3.15A 250 100 1200
219-1 4A 250 100 1400




Current characteristics
Rated  Blowing time
 Quick-acting Time-lag
100% 4 hour Min
200% 60sec Max 1~60sec


Current characteristics
Rated  Blowing time
2.1In Max 2min
2.75
In
Min 400ms
Max 10s
4 In Min 150ms
Max 3s
10 In Min 20ms
Max 150ms

219 Rated breaking capacity
50 amperes at 125V AC(500mA~5A)
50 amperes at 250V AC(500mA~5A)

219-1 Rated breaking capacity
35A or 10In whichever is greater


Certification
Model Certification Certification number Current range
219 UR JDYX2.E171685 100mA-5A
219 CSA JDYX8.E171685 100mA-5A
219-1 VDE 40030432 1A-3.15A

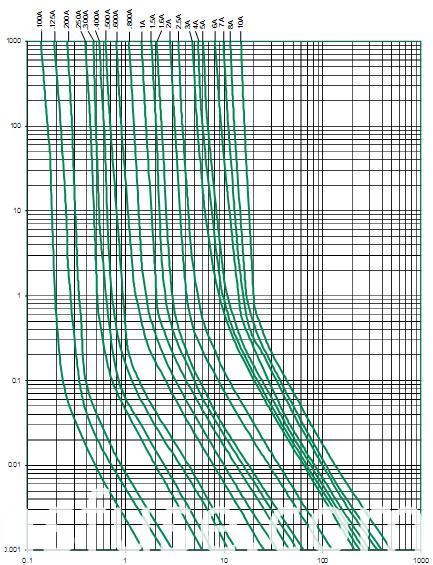

 219 /219-1(Glass tube)Current-time curve

Micro Fuse 3*10 Glass Tube Fuse Fast-Acting 219/219-1 Series Glass Tube
                                              Current(A)
