Ceramic Tube Fuse Time-Lag 10.3 X 38 mm

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  336 series

Product Description

Model NO.: 336 series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: High Usaga: High Voltage Fusing Speed: T Standard: UL Specification: 10.3x38 mm HS Code: 85361000 336 series
This series are fuses with high voltage and high breaking capacity, the rated voltage is 600V and the breaking capacity is as high as 100000A at 600V AC. The application areas are power equipment, power generation equipment, strong lighting and other relative high voltage and large current equipment. The dimension is 10.3 x 38 mm. The fuses comply with UL248-1, UL248-14 or IEC60269-6 standards, also in line with the QJB/YXRT39-2015 enterprise military standard of China. The fuses are made of high quality materials by complex production process of special internal structure and thus the fuses have the advantage of high reliability. The fuses are widely used in all kinds of civilian and military equipments requiring high rated voltage and high breaking capacity.

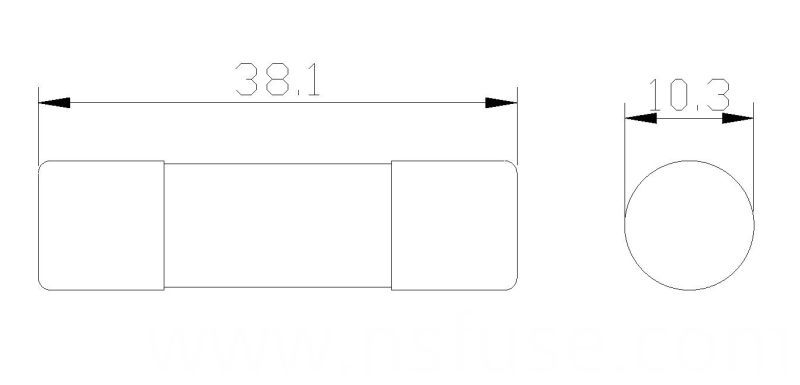

Unit:mm


Ceramic Tube Fuse Time-Lag 10.3 X 38 mm

Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
336 1A 600
336 1.5A 600
336 2A 600
336 2.5A 600
336 3A 600
336 3.5A 600
336 4A 600
336 5A 600
336 6A 600
336 7A 600
336 8A 600
336 9A 600
336 10A 600
336 12A 600
336 15A 600
336 20A 600
336 25A 600
336 30A 600


UL Current characteristics
 Rated  Rated current      Blowing time
110% 1~30A 4 hour Min
135% 1~30A 1 hour Max
200% 1~4A 2 sec Max
200% 5~12A 15 sec Max
200% 15~30A 2 min Max

IEC Current characteristics
 Rated  Rated current Blowing time
135% 1~30A 1 hour Min
145% 1~30A 1 hour Max

UL Rated breaking capacity:
AC600V:100,000A(up to 200,000A)

IEC Rated breaking capacity:
DC1000A:200,000A


336 Current-time curve

Ceramic Tube Fuse Time-Lag 10.3 X 38 mm
