Hbc Tube Fuse Fast-Acting 6.3 X 30 mm

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  RF1-32(30) (H)

Product Description

Model NO.: RF1-32(30) (H) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Specification: 6.3 x 30 mm HS Code: 85361000 Breaking Capacity: High Usaga: Low Voltage Fusing Speed: F Trademark: songshan Origin: Shanghai, China RF1-32(30) (H) series
RF1-32 (30) (H) is ceramic tube fast-acting high breaking fuse with size 6.35 * 31.8. This product is to be fixed with a holder or clip.
The general structure includes a fuse tube and a contact conductive portion, support insulator and a base part, the fuse tube is filled with quartz sand for arc extinguishing, the melt is metal wire or metal plate made of metal material with low melting point, connected in series in the circuit to be protected, when overload or failure occurs in the circuit or device, the melt heats up and melts down and, thereby cut off the circuit to protect the circuit or equipment. Generally it is applicable to large power electric appliances.

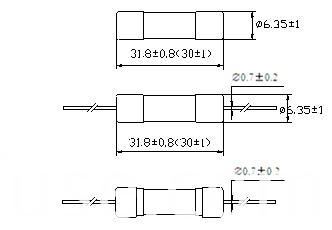

Unit:mm

Hbc Tube Fuse Fast-Acting 6.3 X 30 mm


Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
RF1-32(30)(H) 500mA 250 1800 2.5
RF1-32(30)(H) 630mA 250 1500 2.5
RF1-32(30)(H) 800mA 250 1200 2.5
RF1-32(30)(H) 1A 250 1000 2.5
RF1-32(30)(H) 1.25A 250 800 4
RF1-32(30)(H) 1.6A 250 600 4
RF1-32(30)(H) 2A 250 500 4
RF1-32(30)(H) 2.5A 250 400 4
RF1-32(30)(H) 3.15A 250 350 4
RF1-32(30)(H) 4A 250 300 4
RF1-32(30)(H) 5A 250 250 4
RF1-32(30)(H) 6.3A 250 200 4
RF1-32(30)(H) 8A 250 200 4
RF1-32(30)(H) 10A 250 200 4
RF1-32(30)(H) 12.5A 250 180 4
RF1-32(30)(H) 16A 250 180 6

RF1-32(30)(H) Current characteristics
Rated  Blowing time
500mA-4A More than
4A-6.3A
More than
6.3A-10A
More than
10A-16A
2.1In Max 30min 30min 30min 30min
2.75
In
Min 10ms 10ms 40ms 40ms
Max 2s 3s 20s 20s
4 In Min 3ms 3ms 10ms 10ms
Max 300ms 300ms 1s 1s
10 In Min 20ms 20ms 30ms 40ms

Rated breaking capacity:1500A

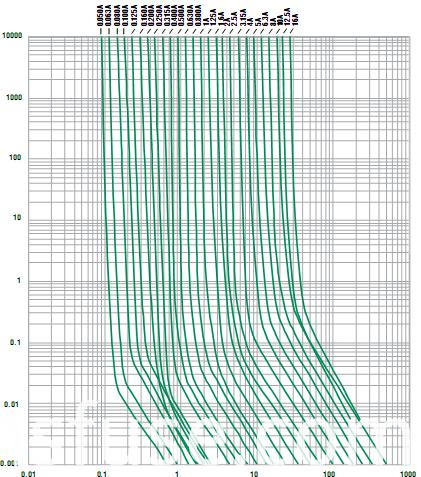

RF1-32(30) (H) series Current-time curve

Hbc Tube Fuse Fast-Acting 6.3 X 30 mm

                                                 Current(A)

Contact us if you need more details on 500mA Fast Blow HBC Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 630mA Hbc Tube Fast Fuse、16 AMP Hbc Fuse Fast-Acting. If these products fail to match your need, please contact us and we would like to provide relevant information.
