Hbc Tube Fuse Time-Lag 5 X 20 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: RT1-20 (E)
Product Description
Model NO.: RT1-20 (E) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: High Usaga: Low Voltage Fusing Speed: T Standard: VDE Specification: 5.0x20 mm HS Code: 85361000 RT1-20 (E) series
RT1-20 (E) with TUV certification, size 5 x 20±0.5, ceramic tube, time-lag, high breaking fuses can be used with holders or clips.
In the process of circuit-breaking of the fuse, because of the circuit voltage, the arc will occur in the gap when melting off, fuse with high quality should avoid as much as possible this arc, and can withstand the circuit voltage added to both ends after it breaks the circuit.
Fuse as a safety element must have two basic functions of electrical performance and security at the same time. Because the quartz sand has a strong cooling effect on the arc, the arc is quickly extinguished, and during the whole process of breaking current, the silent light, high breaking capacity, good security.
Unit:mm
Electrical characteristics
RT1-20 (E) Current characteristics
Rated breaking capacity:1500A
RT1-20(E) Current-time curve
Current(A) Contact us if you need more details on Low Voltage Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Glass Tube Fuse、Rated Breaking Capacity. If these products fail to match your need, please contact us and we would like to provide relevant information.
RT1-20 (E) with TUV certification, size 5 x 20±0.5, ceramic tube, time-lag, high breaking fuses can be used with holders or clips.
In the process of circuit-breaking of the fuse, because of the circuit voltage, the arc will occur in the gap when melting off, fuse with high quality should avoid as much as possible this arc, and can withstand the circuit voltage added to both ends after it breaks the circuit.
Fuse as a safety element must have two basic functions of electrical performance and security at the same time. Because the quartz sand has a strong cooling effect on the arc, the arc is quickly extinguished, and during the whole process of breaking current, the silent light, high breaking capacity, good security.

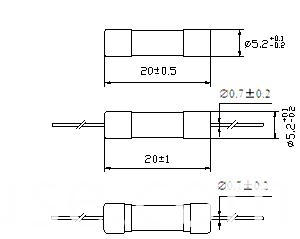

Unit:mm
Electrical characteristics
Model | Rated current (A) | Rated voltage (V) | Max Voltage drop (mV) | Max persistence Power consumption (W) |
RT1-20(E) | 1A | 250 | 150 | 1.6 |
RT1-20(E) | 1.25A | 250 | 150 | 1.6 |
RT1-20(E) | 1.6A | 250 | 150 | 1.6 |
RT1-20(E) | 2A | 250 | 150 | 1.6 |
RT1-20(E) | 2.5A | 250 | 120 | 1.6 |
RT1-20(E) | 3.15A | 250 | 100 | 1.6 |
RT1-20(E) | 4A | 250 | 100 | 1.6 |
RT1-20(E) | 5A | 250 | 100 | 1.6 |
RT1-20(E) | 6.3A | 250 | 100 | 1.6 |
RT1-20(E) | 8A | 250 | 100 | 4 |
RT1-20(E) | 10A | 250 | 100 | 4 |
RT1-20 (E) Current characteristics
Rated | Blowing time | |
1A-10A | ||
2.1In | Max | 2min |
2.75 In | Min | 600ms |
Max | 10s | |
4 In | Min | 150ms |
Max | 3s | |
10 In | Min | 20ms |
Max | 300ms |
Rated breaking capacity:1500A

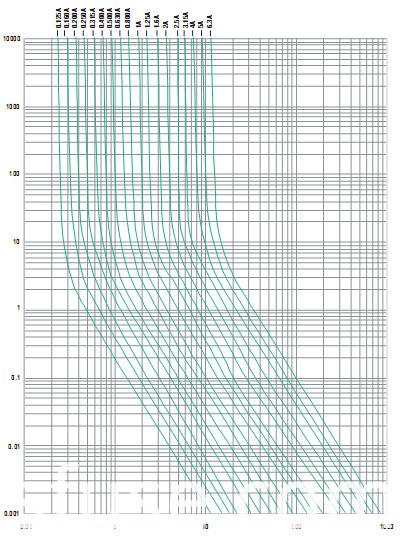

RT1-20(E) Current-time curve
Current(A) Contact us if you need more details on Low Voltage Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Glass Tube Fuse、Rated Breaking Capacity. If these products fail to match your need, please contact us and we would like to provide relevant information.
