Hbc Tube Fuse Fast-Acting Axial Lead 6.3 X 30 mm

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  RF2-32(30) (H)

Product Description

Model NO.: RF2-32(30) (H) Type: Current Fuse Shape: Circle Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: High Usaga: Low Voltage Fusing Speed: F Standard: TUV Specification: 6.3 x 30 mm HS Code: 85361000 RF2-32(30) (H) series
RF2-32 (30) (H) ceramic tube, fast-acting, high breaking capacity, lead fuse can be directly welded to the integrated circuit board without being used with holders or clips. The size is 6.35×31.8±1.
Industrial development has damaged to the environment, in turn human understanding progress of nature and society put forward to protect the environment; only a good living environment can ensure human life and sustainable development. So far, part of the Japan / Taiwan / European users has begun to replace or do the transition work, products, which cannot meet the requirements of lead-free will no longer be used; and most of the production enterprises have to carry out this work, launched free products to replace leaded products, but the goal is still not fully reached.
This product has reached the lead-free requirements, no pollution to the environment, in line with environmental protection requirements, thus can be assured of the use.

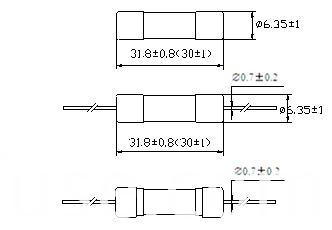

Unit:mm

Hbc Tube Fuse Fast-Acting Axial Lead 6.3 X 30 mm

Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
RF2-32(30)(H) 500mA 250 1800 2.5
RF2-32(30)(H) 630mA 250 1500 2.5
RF2-32(30)(H) 800mA 250 1200 2.5
RF2-32(30)(H) 1A 250 1000 2.5
RF2-32(30)(H) 1.25A 250 800 4
RF2-32(30)(H) 1.6A 250 600 4
RF2-32(30)(H) 2A 250 500 4
RF2-32(30)(H) 2.5A 250 400 4
RF2-32(30)(H) 3.15A 250 350 4
RF2-32(30)(H) 4A 250 300 4
RF2-32(30)(H) 5A 250 250 4
RF2-32(30)(H) 6.3A 250 200 4
RF2-32(30)(H) 8A 250 200 4
RF2-32(30)(H) 10A 250 200 4
RF2-32(30)(H) 12.5A 250 180 4
RF2-32(30)(H) 16A 250 180 6

RF2-32(20)(H) Current characteristics
Rated  Blowing time
500mA-4A More than
4A-6.3A
More than
6.3A-10A
More than
10A-16A
2.1In Max 30min 30min 30min 30min
2.75
In
Min 10ms 10ms 40ms 40ms
Max 2s 3s 20s 20s
4 In Min 3ms 3ms 10ms 10ms
Max 300ms 300ms 1s 1s
10 In Min 20ms 20ms 30ms 40ms

Rated breaking capacity:1500A

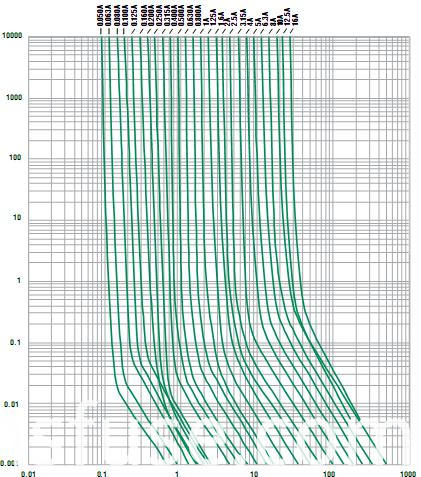

RF2-32(30)(H) series Current-time curve
Hbc Tube Fuse Fast-Acting Axial Lead 6.3 X 30 mm

                                               Current(A)

Contact us if you need more details on Fast Blow Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Fast Actomg Fuse、250V Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
