Hbc Tube Fuse Time-Lag 6.3 X 30 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: RT1-32(30) (H) series
Product Description
Model NO.: RT1-32(30) (H) series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: High Usaga: Low Voltage Fusing Speed: T Standard: VDE Specification: 6.3x30 mm HS Code: 85361000 RT1-32(30) (H) series
RT1-32 (30) (H) ceramic tube, high breaking, slow fuse, size Ф6.35×31.8. Additional clips are needed.
Appearance: fonts exist on both ends of the copper cap, and they are bronze pressing. The font lines are of uniform thickness, and have no excessive weight, no print overlap, no deformation of caps, no lack of cap printing and no other marking illegible phenomenon, the porcelain tube has not any rupture or crack, the copper cap has no scratches, also there is no exposed copper or exposed melt (wire head) on cap ends or other undesirable phenomena. The product is a fuse with inside welding and its copper caps on both ends are lead-free soldered, which is in compliance with international environmental requirements, there is no pollution to the environment.
The product application range: lightning protection equipment, power supply, power tools, industrial control, etc.
Unit:mm
Electrical characteristics
RT1-32(30) (H) Current characteristics
Rated breaking capacity:1500A
Certification
RT1-32(30)(H) Current-time curve
Current(A) Contact us if you need more details on 13 AMP Slow Blow HBC Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 15 AMP Hbc Slow Fuse、20 AMP Hbc Fuse Slow Blow. If these products fail to match your need, please contact us and we would like to provide relevant information.
RT1-32 (30) (H) ceramic tube, high breaking, slow fuse, size Ф6.35×31.8. Additional clips are needed.
Appearance: fonts exist on both ends of the copper cap, and they are bronze pressing. The font lines are of uniform thickness, and have no excessive weight, no print overlap, no deformation of caps, no lack of cap printing and no other marking illegible phenomenon, the porcelain tube has not any rupture or crack, the copper cap has no scratches, also there is no exposed copper or exposed melt (wire head) on cap ends or other undesirable phenomena. The product is a fuse with inside welding and its copper caps on both ends are lead-free soldered, which is in compliance with international environmental requirements, there is no pollution to the environment.
The product application range: lightning protection equipment, power supply, power tools, industrial control, etc.
Unit:mm
Electrical characteristics
Model | Rated current (A) | Rated voltage (V) | Max Voltage drop (mV) | Max persistence Power consumption (W) |
RT1-32(30)(H) | 1A | 250 | 350 | 2.5 |
RT1-32(30)(H) | 1.25A | 250 | 300 | 2.5 |
RT1-32(30)(H) | 1.6A | 250 | 200 | 2.5 |
RT1-32(30)(H) | 2A | 250 | 190 | 2.5 |
RT1-32(30)(H) | 2.5A | 250 | 180 | 2.5 |
RT1-32(30)(H) | 3A | 250 | 140 | 4 |
RT1-32(30)(H) | 3.15A | 250 | 140 | 4 |
RT1-32(30)(H) | 4A | 250 | 100 | 4 |
RT1-32(30)(H) | 5A | 250 | 100 | 4 |
RT1-32(30)(H) | 6.3A | 250 | 100 | 4 |
RT1-32(30)(H) | 8A | 250 | 100 | 4 |
RT1-32(30)(H) | 10A | 250 | 100 | 4 |
RT1-32(30)(H) | 12.5A | 250 | 80 | 4 |
RT1-32(30)(H) | 15A | 250 | 80 | 6 |
RT1-32(30)(H) | 16A | 250 | 80 | 6 |
RT1-32(30) (H) Current characteristics
Rated | Blowing time | |||
1A-3.15A | More than 3.15A-10A | More than 10A-16A | ||
2.1In | Max | 30min | 30min | 30min |
2.75 In | Min | 750ms | 750ms | 750ms |
Max | 80s | 80s | 80s | |
4 In | Min | 95ms | 150ms | 150ms |
Max | 5s | 5s | 8s | |
10 In | Min | 10ms | 10ms | 10ms |
Max | 150ms | 150ms | 150ms |
Rated breaking capacity:1500A
Certification
Model | Certification | Certification number | Current range |
RT1-30(H) | TUV | J50287671-0001 | 1 A-15A |

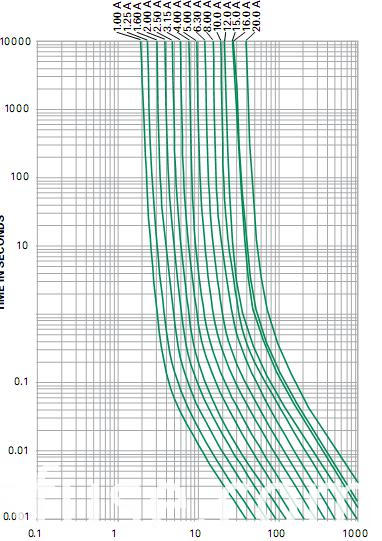

RT1-32(30)(H) Current-time curve
Current(A) Contact us if you need more details on 13 AMP Slow Blow HBC Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 15 AMP Hbc Slow Fuse、20 AMP Hbc Fuse Slow Blow. If these products fail to match your need, please contact us and we would like to provide relevant information.
