High Breaking Capacity Tube Fuse Time-Lag Axial Lead
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: RT2-20 (E)
Product Description
Model NO.: RT2-20 (E) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: High Usaga: Low Voltage Fusing Speed: T Standard: VDE Specification: 5.0x20 mm HS Code: 85361000 RT2-20 (E) series
Type RT2-20 (E), without being used with holders or clips, can be directly welded on the integrated circuit board, ceramic tube, high breaking, slow blow, lead fuse. The size is 5 x 20 ± 1.
The heat converted by the current when the fuse is energized, will make the increase of melt temperature, in the normal operating current or allowed overload current the heat generated by the current and the heat emitted by the melt, housing and surrounding environment through radiation, convection and conduction, can gradually reach equilibrium, if the heat can't keep pace with the heating speed, the heat will accumulate on the melt gradually, the melt temperature rises, once the temperature reaches the melting point, the heat will make it liquid or gas, thereby open the circuit of current, and thus safety protection to the circuit and person is achieved.
Because the product is filled with quartz sand, the melt temperature increases slowly, in the normal use of the case, the stability is higher!

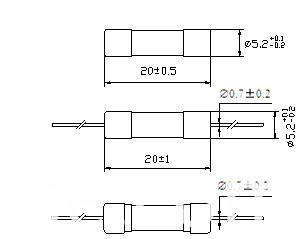

Unit:mm
Electrical characteristics
RT2-20 (E) Current characteristics
Rated breaking capacity:150A
RT2-20(E) Current-time curve
Current(A)
Contact us if you need more details on 1 AMP Slow Blow HBC Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 5 AMP Hbc Tube Slow Fuse、8 AMP Hbc Fuse Time-Lag. If these products fail to match your need, please contact us and we would like to provide relevant information.
Type RT2-20 (E), without being used with holders or clips, can be directly welded on the integrated circuit board, ceramic tube, high breaking, slow blow, lead fuse. The size is 5 x 20 ± 1.
The heat converted by the current when the fuse is energized, will make the increase of melt temperature, in the normal operating current or allowed overload current the heat generated by the current and the heat emitted by the melt, housing and surrounding environment through radiation, convection and conduction, can gradually reach equilibrium, if the heat can't keep pace with the heating speed, the heat will accumulate on the melt gradually, the melt temperature rises, once the temperature reaches the melting point, the heat will make it liquid or gas, thereby open the circuit of current, and thus safety protection to the circuit and person is achieved.
Because the product is filled with quartz sand, the melt temperature increases slowly, in the normal use of the case, the stability is higher!
Unit:mm
Electrical characteristics
Model | Rated current (A) | Rated voltage (V) | Max Voltage drop (mV) | Max persistence Power consumption (W) |
RT2-20(E) | 1A | 250 | 150 | 1.6 |
RT2-20(E) | 1.25A | 250 | 150 | 1.6 |
RT2-20(E) | 1.6A | 250 | 150 | 1.6 |
RT2-20(E) | 2A | 250 | 150 | 1.6 |
RT2-20(E) | 2.5A | 250 | 120 | 1.6 |
RT2-20(E) | 3.15A | 250 | 100 | 1.6 |
RT2-20(E) | 4A | 250 | 100 | 1.6 |
RT2-20(E) | 5A | 250 | 100 | 1.6 |
RT2-20(E) | 6.3A | 250 | 100 | 1.6 |
RT2-20(E) | 8A | 250 | 100 | 4 |
RT2-20(E) | 10A | 250 | 100 | 4 |
RT2-20 (E) Current characteristics
Rated | Blowing time | |
1A-10A | ||
2.1In | Max | 2min |
2.75 In | Min | 600ms |
Max | 10s | |
4 In | Min | 150ms |
Max | 3s | |
10 In | Min | 20ms |
Max | 300ms |
Rated breaking capacity:150A

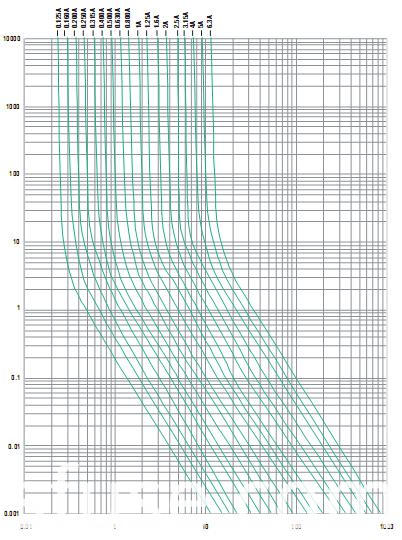

RT2-20(E) Current-time curve
Current(A)
Contact us if you need more details on 1 AMP Slow Blow HBC Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 5 AMP Hbc Tube Slow Fuse、8 AMP Hbc Fuse Time-Lag. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Cartridge Fuse > HBC Fuse
