Glass Fuse Fast-Acting PSE Certificate 6.3 X 30 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: 324 326 series
Product Description
Model NO.: 324 326 series Usaga: Low Voltage Fusing Speed: F Standard: JIS HS Code: 85361000 Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Origin: Shanghai, China 324 326 series
Such fuses have exquisite appearance and wide application range, and can be applied to various types of household appliances, power, instrumentation, industrial control, etc. The fuse obtained certification UL, UR and CSA. According to the requirements of the product, there are two kinds of material selection, one is transparent glass tube, and the other is ceramic tube. There are different kinds of advantages for glass tube and ceramic tube respectively. For glass tube type, one can see the inner structure clearly, so it is easy to judge the quality of the fuse, and at a glance, one can see whether the fuse is damaged after the fuse is assembled on the machine and is damaged. For ceramic tube type, generally, its interrupting capacity is higher than that of glass tube type.
Unit:mm

324 326 JIS A series Current characteristics
Rated breaking capacity
500 amperes at 125Vac(6A~30A)PSE Type A
Certification
324 326 Current-time curve

Current(A)
Contact us if you need more details on Blown Fuse Tpyes. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Low Voltage Fuse、Fuses for Sale. If these products fail to match your need, please contact us and we would like to provide relevant information.
Such fuses have exquisite appearance and wide application range, and can be applied to various types of household appliances, power, instrumentation, industrial control, etc. The fuse obtained certification UL, UR and CSA. According to the requirements of the product, there are two kinds of material selection, one is transparent glass tube, and the other is ceramic tube. There are different kinds of advantages for glass tube and ceramic tube respectively. For glass tube type, one can see the inner structure clearly, so it is easy to judge the quality of the fuse, and at a glance, one can see whether the fuse is damaged after the fuse is assembled on the machine and is damaged. For ceramic tube type, generally, its interrupting capacity is higher than that of glass tube type.

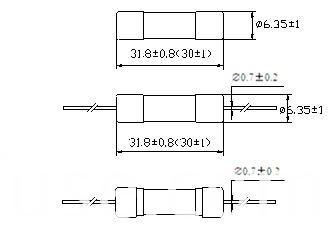

Unit:mm

324 326 JIS A series Current characteristics
Rated | Blowing time |
100% | 4hour Min |
135% | 1hour Max |
200% | 2 min Max |
Rated breaking capacity
500 amperes at 125Vac(6A~30A)PSE Type A
Certification
Model | Certification | Certification number | Current range |
324 326 | PSE | JET6121-31003-1001 | 6A-30A |
JET6121-31003-1002 | |||
JET6121-31003-1003 | |||
JET6121-31003-1004 | |||
JET6121-31003-1005 | |||
JET6121-31003-1006 | |||
JET6121-31003-1007 | |||
JET6121-31003-1008 | |||
JET6121-31003-1009 | |||
JET6121-31003-1010 | |||
JET6121-31003-1011 |

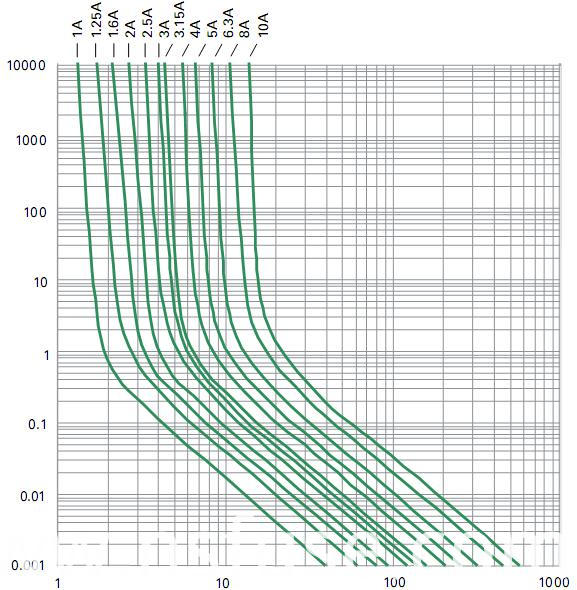

324 326 Current-time curve

Current(A)
Contact us if you need more details on Blown Fuse Tpyes. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Low Voltage Fuse、Fuses for Sale. If these products fail to match your need, please contact us and we would like to provide relevant information.
