Cartridge Fuse Axial Lead Time-Lag

Basic Info

Model No.:  214, 214-1

Product Description

Model NO.: 214, 214-1 Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: Songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Standard: UL Specification: 5x20 mm HS Code: 85361000 The fuse is a time-lag product; it remains intact in the circuit when there is a non-fault pulse current and can provide protection for long-time overload. The regular fuses can not afford such current, in this kind of circuit such fuse is used, if a larger rating fuse is used, the circuit cannot be protected in case of overload. Time-lag fuses' melting body is formed by special processing and it has the energy-absorbing function, adjusting the quantity of energy absorbed would be capable of resisting impact current and provide the protection to overload circuit as well. Time-lag fuses are used in such circuit, in which momentary current is several times greater than normal operating current when switching. The time of duration is very short though the peak current is very high. We often call such current a pulse.

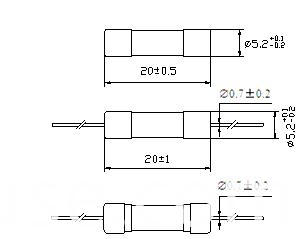

Unit:mm

Cartridge Fuse Axial Lead Time-Lag


Electrical  characteristics

   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
214  500mA 125/250
214  600mA 125/250
214  700mA 125/250
214  800mA 125/250
214-1 1A 125/250
214-1 1.25A 125/250
214-1 1.6A 125/250
214-1 2A 125/250
214-1 2.5A 125/250
214  214-1 3A 125/250
214  4A 125/250 100 1.6
214  5A 125/250 100 1.6
214  6.3A 125/250 100 1.6
214  8A 125/250 100 4
214  10A 125/250 100 4
214  12.5A 125/250 80 6
214  15A 125/250 80 6



UL Current characteristics

Rated Blowing time
100% 4hour Min
135% 1hour Max
200% 5s-2Min



UR Current characteristics

Rated  Blowing time
More than
3A-10A
More than
10A-16A
2.1In Max 2min 5min
2.75
In
Min 600ms 600ms
Max 10s 15s
4 In Min 150ms 150ms
Max 3s 5s
10 In Min 20ms 20ms
Max 300ms 400ms

UL Rated breaking capacity
10,000 amperes at 125Vac(200mA~3A)
35 amperes at 250Vac(200mA~1.25A)
100 amperes at 250Vac(1.6A~3A)

UR Rated breaking capacity
10× ampere rating at 125Vac (4A~8A)
10× ampere rating at 250Vac (4A~8A)
100 amperes at 125Vac(10A~15A)
100 amperes at 250Vac(10A~15A)

Certification
Model Certification Certification number Current range
214 UL JDYX.E171685 200mA-800mA,3A
214  CSA JDYX7.E171685 200mA-800mA,3A
214-1 UL JDYX.E171685 1A-3A
214-1 CSA JDYX7.E171685 1A-3A
214  UR JDYX2.E171685 4-15A
214  CSA JDYX8.E171685 4-15A

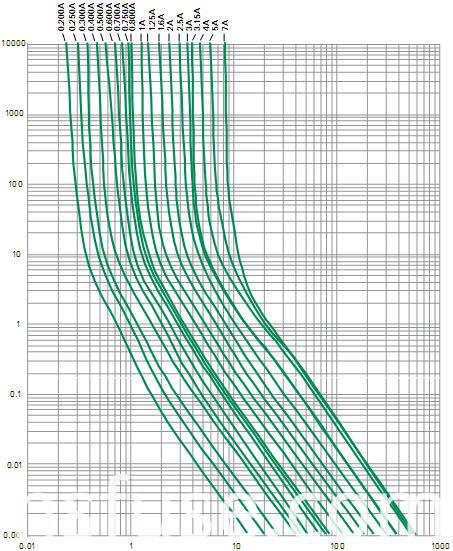

214,214-1  UL series Current-time curve

Cartridge Fuse Axial Lead Time-Lag




                               Current(A)




214  UR series Current-time curve

Cartridge Fuse Axial Lead Time-Lag

Contact us if you need more details on 5 AMP Time-Lag Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ceramic Fuse Slow Blow、Glass Fuse for Cleaner. If these products fail to match your need, please contact us and we would like to provide relevant information.
