Glass Tube Fuse Time-Lag PSE Certificate 6.3X30 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: SN series
Product Description
Model NO.: SN series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Standard: JIS Specification: 6.3x30 mm HS Code: 85361000 SN series
Type SN is a time delay fuse product without lead, the size 6.3 x 31.8 mm, and the fuse acquired the Japanese PSE certificate. The metal material made by special smelting process is used and the process of tinning, threading and welding is completed by automatic machine, and then the 100% resistance test, visual test and length test are conducted. The fuses have beautiful packaging box, and can be used normally for a long time with stability, reliability and longevity. In order to ensure your safety, we treat every product with heart.
Unit:mm
SN JIS B series Current characteristics
Rated breaking capacity
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B
Certification
SN Current-time curve
Current(A)
Contact us if you need more details on 20A Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Slow Blow Fuse、Electrical Breaker Types. If these products fail to match your need, please contact us and we would like to provide relevant information.
Type SN is a time delay fuse product without lead, the size 6.3 x 31.8 mm, and the fuse acquired the Japanese PSE certificate. The metal material made by special smelting process is used and the process of tinning, threading and welding is completed by automatic machine, and then the 100% resistance test, visual test and length test are conducted. The fuses have beautiful packaging box, and can be used normally for a long time with stability, reliability and longevity. In order to ensure your safety, we treat every product with heart.

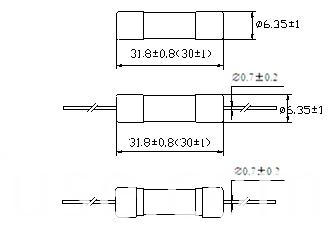

Unit:mm
SN JIS B series Current characteristics
| Rated | Blowing time |
| 135% | 1.5hour Min |
| 160% | 1hour Max |
| 200% | 2 min Max |
| 1000% | 10ms Min |
Rated breaking capacity
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B
Certification
| Model | Certification | Certification number | Current range |
| SN | PSE | JET6121-31003-1001 | 1A-30A |
| JET6121-31003-1002 | |||
| JET6121-31003-1003 | |||
| JET6121-31003-1004 | |||
| JET6121-31003-1005 | |||
| JET6121-31003-1006 | |||
| JET6121-31003-1007 | |||
| JET6121-31003-1008 | |||
| JET6121-31003-1009 | |||
| JET6121-31003-1010 | |||
| JET6121-31003-1011 |

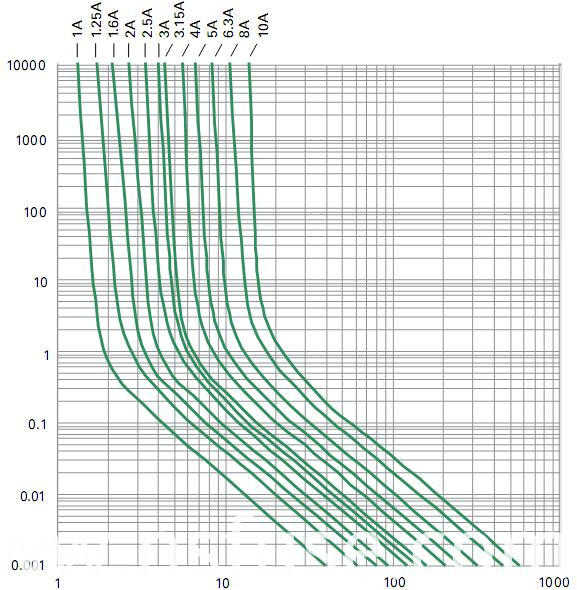

SN Current-time curve
Current(A)
Contact us if you need more details on 20A Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Slow Blow Fuse、Electrical Breaker Types. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Cartridge Fuse > Glass Fuse
