Glass Tube Fuse Time-Lag PSE Certificate 5X20 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: S series
Product Description
Model NO.: S series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Standard: JIS Specification: 5x20 mm HS Code: 85361000 S series
Type S tube slow fuse series without lead with size 5 × 20 mm already got the PSE certification. This fuse adopts the high quality metal material, its internal structure is made by special process, with high reliability, and "no danger of anything going wrong" is really achieved. The cap of the fuses adopts special coating and thus the contact is good, oxidation is prevented, and the service life of the fuses is extended. That is, the fuse is an economical and practical product with high reliability, and the fuse is broadly used in household, hotel and other small electric appliances.
Unit:mm
S JIS B series Current characteristics
Rated breaking capacity
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B
Certification
S Current-time curve
Current(A)
Contact us if you need more details on Glass Tube Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Current Fuse、Low Voltage Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
Type S tube slow fuse series without lead with size 5 × 20 mm already got the PSE certification. This fuse adopts the high quality metal material, its internal structure is made by special process, with high reliability, and "no danger of anything going wrong" is really achieved. The cap of the fuses adopts special coating and thus the contact is good, oxidation is prevented, and the service life of the fuses is extended. That is, the fuse is an economical and practical product with high reliability, and the fuse is broadly used in household, hotel and other small electric appliances.

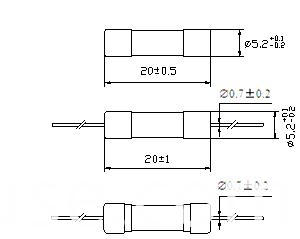

Unit:mm
S JIS B series Current characteristics
| Rated | Blowing time |
| 135% | 1.5hour Min |
| 160% | 1hour Max |
| 200% | 2 min Max |
| 1000% | 10ms Min |
Rated breaking capacity
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B
Certification
| Model | Certification | Certification number | Current range |
| S | PSE | JET6121-31003-1001 | 1A-30A |
| JET6121-31003-1002 | |||
| JET6121-31003-1003 | |||
| JET6121-31003-1004 | |||
| JET6121-31003-1005 | |||
| JET6121-31003-1006 | |||
| JET6121-31003-1007 | |||
| JET6121-31003-1008 | |||
| JET6121-31003-1009 |

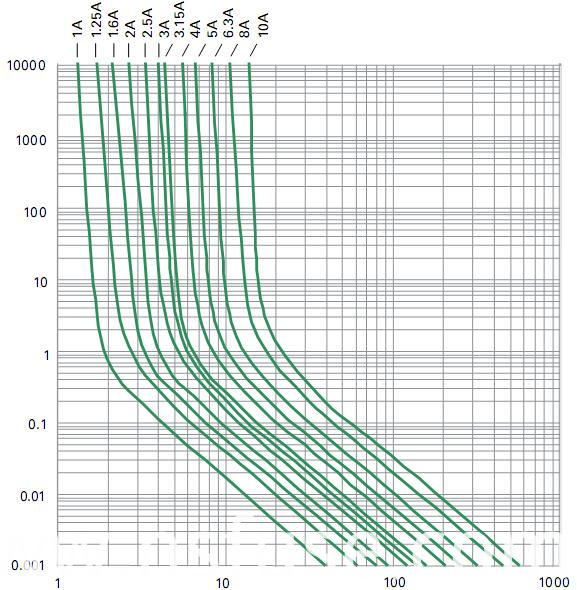

S Current-time curve
Current(A)
Contact us if you need more details on Glass Tube Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Current Fuse、Low Voltage Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
