Glass Tube Fuse Fast-Acting Axial Lead PSE Certificate

Basic Info

Model No.:  FNR series

Product Description

Model NO.: FNR series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: JIS Specification: 6.3x32(30) mm HS Code: 85361000 FNR series
Type FNR is a fast-acting Cartridge Fuse with lead, and already acquired the Japanese PSE certificate. The dimension of the fast cartridge tube is 6.3 x 31.8 mm. The breaking capacity of the fuses can reach 500A. This series of fuses are composed of a tube body, a melt, two leads and both ends of the cap, the material of main body of the caps is brass, and the material of the lead is metal wire. The fuses can be installed on the circuit board, without occupying a lot of space. The threading and welding of the fuses are completed by integrated automated machines at one time. The fast cartridge fuses have the features such as good performance, beautiful appearance, easy to use; it is the product you can trust.

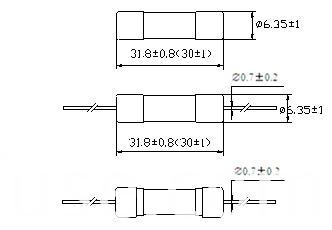

Unit:mm

Glass Tube Fuse Fast-Acting Axial Lead PSE Certificate

FNR  JIS B series Current characteristics
Rated  Blowing time
135% 1.5hour Min
160% 1hour Max
200% 2 min Max

Rated breaking capacity
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B

Certification
Model Certification Certification number Current range
FNR PSE JET6121-31003-1001 1A-30A
JET6121-31003-1002
JET6121-31003-1003
JET6121-31003-1004
JET6121-31003-1005
JET6121-31003-1006
JET6121-31003-1007
JET6121-31003-1008
JET6121-31003-1009
JET6121-31003-1010
JET6121-31003-1011

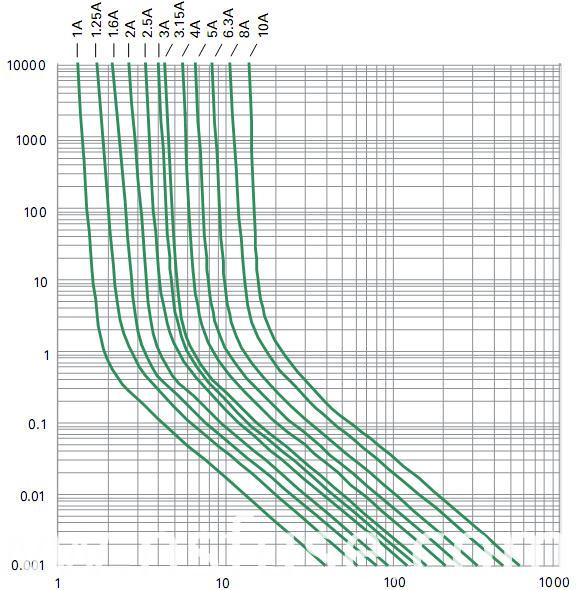

FNR Current-time curve

Glass Tube Fuse Fast-Acting Axial Lead PSE Certificate
                                      Current(A)
