PSE Certificate Glass Tube Fuse Fast-Acting Axial Lead

Basic Info

Model No.:  FR series

Product Description

Model NO.: FR series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Specification: 5x20 mm HS Code: 85361000 Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: JIS Origin: Shanghai, China  FR series
Type FR is a fast tube fuse, with the dimension 5×20 mm. The fuse obtained the Japanese PSE certification. The tube fuses passed a variety of rigorous tests such as blowing, temperature rise, life test, salt spray test, high and low temperature test. The fast tube fuses are widely used in washing machine and all kinds of household appliances, protecting the safety of the household appliances at any time, thus the serious injury caused by internal fault of electric appliances can be avoided and the safety of family life can be protected. This series of fuses are well received by customers.

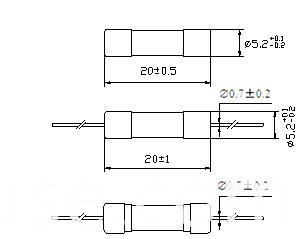

Unit:mm

PSE Certificate Glass Tube Fuse Fast-Acting Axial Lead

 FR  JIS B series Current characteristics
Rated  Blowing time
135% 1.5hour Min
160% 1hour Max
200% 2 min Max

Rated breaking capacity
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B

Certification
Model Certification Certification number Current range
 FR PSE JET6121-31003-1001 1A-30A
JET6121-31003-1002
JET6121-31003-1003
JET6121-31003-1004
JET6121-31003-1005
JET6121-31003-1006
JET6121-31003-1007
JET6121-31003-1008
JET6121-31003-1009
JET6121-31003-1010
JET6121-31003-1011

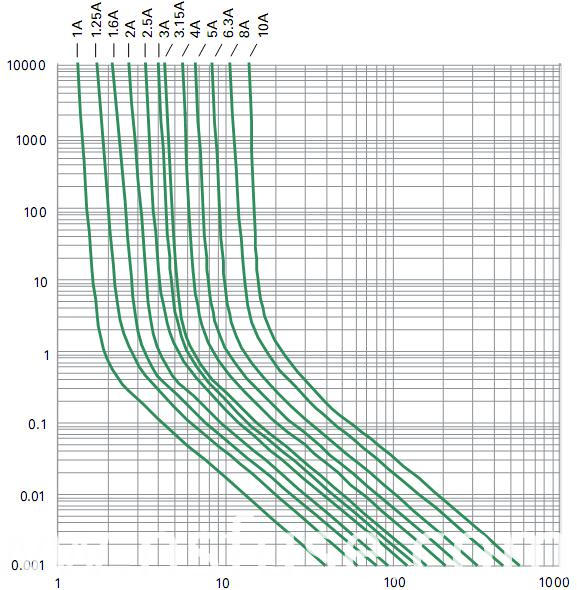

FR Current-time curve

PSE Certificate Glass Tube Fuse Fast-Acting Axial Lead
                                           Current(A)
