Glass Tube Fuse Fast-Acting PSE Certificate 6.3X30 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: FN series
Product Description
Model NO.: FN series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: JIS Specification: 6.3x30 mm HS Code: 85361000 FN series
Type FN, a fast tube fuse series without lead, dimension 6.3×31.8 mm, got the Japanese PSE certification. The tube fuses have a long service life and have received a good response from the customers. The fuses went through the rigorous tests and you can rest assured of the fuses. The entire manufacturing process of the fast fuses is conducted by one-body automated machines, and the fuses have good stability. Each specification of the fast tube fuses has 125V and 250V for arbitrary selection. The packaging of the fuses is beautiful, simple and convenient. We are carefully producing every product.
Unit:mm
FN JIS B series Current characteristics
Rated breaking capacity
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B
Certification
FN Current-time curve
Current(A)
Contact us if you need more details on Glass Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 20 AMP Fuse、Porcelain Fuse Types. If these products fail to match your need, please contact us and we would like to provide relevant information.
Type FN, a fast tube fuse series without lead, dimension 6.3×31.8 mm, got the Japanese PSE certification. The tube fuses have a long service life and have received a good response from the customers. The fuses went through the rigorous tests and you can rest assured of the fuses. The entire manufacturing process of the fast fuses is conducted by one-body automated machines, and the fuses have good stability. Each specification of the fast tube fuses has 125V and 250V for arbitrary selection. The packaging of the fuses is beautiful, simple and convenient. We are carefully producing every product.

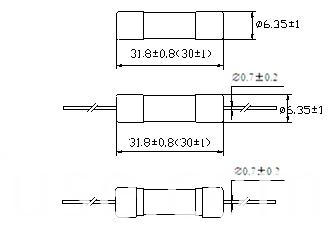

Unit:mm
FN JIS B series Current characteristics
| Rated | Blowing time |
| 135% | 1.5hour Min |
| 160% | 1hour Max |
| 200% | 2 min Max |
Rated breaking capacity
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B
Certification
| Model | Certification | Certification number | Current range |
| FN | PSE | JET6121-31003-1001 | 1A-30A |
| JET6121-31003-1002 | |||
| JET6121-31003-1003 | |||
| JET6121-31003-1004 | |||
| JET6121-31003-1005 | |||
| JET6121-31003-1006 | |||
| JET6121-31003-1007 | |||
| JET6121-31003-1008 | |||
| JET6121-31003-1009 | |||
| JET6121-31003-1010 | |||
| JET6121-31003-1011 |

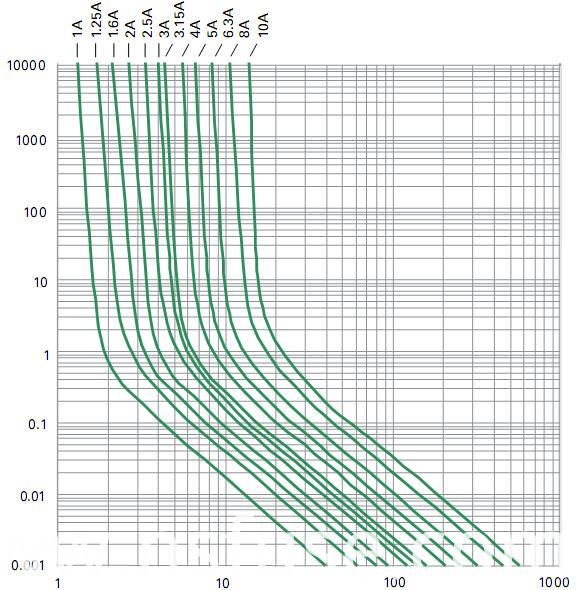

FN Current-time curve
Current(A)
Contact us if you need more details on Glass Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 20 AMP Fuse、Porcelain Fuse Types. If these products fail to match your need, please contact us and we would like to provide relevant information.
