PSE Certificate Glass Tube Fuse Fast-Acting 5X20 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: F series
Product Description
Model NO.: F series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: JIS Specification: 5x20 mm HS Code: 85361000 F series
Type F is a fast tubular fuse series without lead, the size is 5 x 20 mm, it obtained PSE certification issued by JET (Japanese Electrical Safety and Environment Research Institute), and the PSE certification standard is the Japan Electrical Safety Law table 3. This series of products are composed of a tube body, a melt and caps of both ends, the tube can be divided into glass tube and ceramic tube, the main body of the melt material is a metal line, the main body of the cap material is brass. The whole manufacturing process of the product is completed by the integrated automation machine, thus there are the features of good consistency, beautiful appearance, easy to use, and therefore, it is worth of your choice.
Unit:mm

F JIS B series Current characteristics
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B
Certification
F Current-time curve

Current(A)
Contact us if you need more details on Glass Fuse Types. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 30 AMP Fuse、Low Voltage Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
Type F is a fast tubular fuse series without lead, the size is 5 x 20 mm, it obtained PSE certification issued by JET (Japanese Electrical Safety and Environment Research Institute), and the PSE certification standard is the Japan Electrical Safety Law table 3. This series of products are composed of a tube body, a melt and caps of both ends, the tube can be divided into glass tube and ceramic tube, the main body of the melt material is a metal line, the main body of the cap material is brass. The whole manufacturing process of the product is completed by the integrated automation machine, thus there are the features of good consistency, beautiful appearance, easy to use, and therefore, it is worth of your choice.

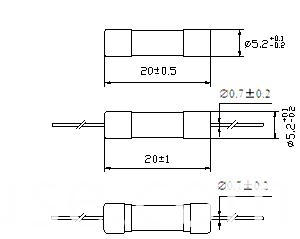

Unit:mm

F JIS B series Current characteristics
Rated | Blowing time |
135% | 1.5hour Min |
160% | 1hour Max |
200% | 2 min Max |
500 amperes at 125Vac(1A~15A)PSE Type B
100 amperes at 125Vac(1A~15A)PSE Type B
Certification
Model | Certification | Certification number | Current range |
F | PSE | JET6121-31003-1001 | 1A-30A |
JET6121-31003-1002 | |||
JET6121-31003-1003 | |||
JET6121-31003-1004 | |||
JET6121-31003-1005 | |||
JET6121-31003-1006 | |||
JET6121-31003-1007 | |||
JET6121-31003-1008 | |||
JET6121-31003-1009 | |||
JET6121-31003-1010 | |||
JET6121-31003-1011 |

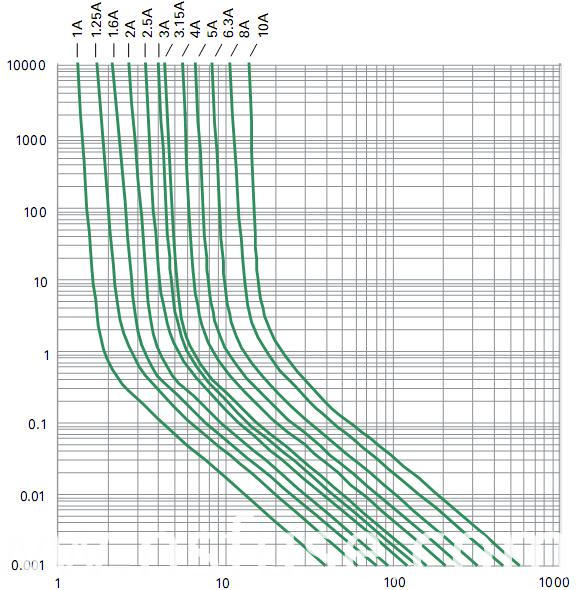

F Current-time curve

Current(A)
Contact us if you need more details on Glass Fuse Types. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 30 AMP Fuse、Low Voltage Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
