Glass Tube Fuse Time-Lag 6.3X30 mm

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  RT2-(32)30

Product Description

Model NO.: RT2-(32)30 Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Standard: VDE Specification: 6.3x30 mm HS Code: 85361000 RT2-(32)30 series(Glass tube)
RT2-32 (30) (H) ceramic tube, high breaking, slow blow fuse with lead, size Ф6.35×31.8, can be directly welded on the integrated circuit board.The fuse is made of lead antimony alloy, which has a relatively large resistivity and a lower melting point. The fuse is also called a fuse, and the IEC/27 standard defines it as "fuse-links" ". It is a kind of electrical components installed in the circuit to ensure the safe operation of the circuit."H" stands for high breaking capacity, a ceramic tube with smooth surface and no rupture or deformation is filled with quartz sand, two blocks are made of brass materials with good conductivity, the copper cap surface is nickel plating, and the alloy wire is lead-free soldered inside copper caps.

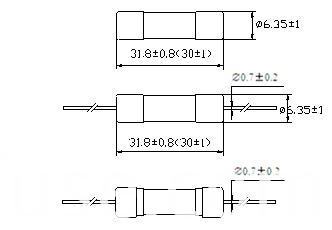

Unit:mm
Glass Tube Fuse Time-Lag 6.3X30 mm


Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
RT2-32(30) 500mA 250 900 1.6
RT2-32(30) 630mA 250 300 1.6
RT2-32(30) 750mA 250 250 1.6
RT2-32(30) 800mA 250 150 1.6
RT2-32(30) 1A 250 150 1.6
RT2-32(30) 1.25A 250 150 1.6
RT2-32(30) 1.6A 250 150 1.6
RT2-32(30) 2A 250 150 1.6
RT2-32(30) 2.5A 250 120 1.6
RT2-32(30) 3.15A 250 100 1.6
RT2-32(30) 4A 250 100 1.6
RT2-32(30) 5A 250 100 1.6
RT2-32(30) 6.3A 250 100 1.6
RT2-32(30) 8A 250 100 4
RT2-32(30) 10A 125/250 100 4
RT2-32(30) 12.5A 125/250 80 6
RT2-32(30) 16A 125/250 80 6


Current characteristics

Rated  Blowing time
More than
100mA-10A
More than
10A-16A
2.1In Max 2min 5min
2.75
In
Min 600ms 600ms
Max 10s 15s
4 In Min 150ms 150ms
Max 3s 5s
10 In Min 20ms 20ms
Max 300ms 400ms

Rated breaking capacity
35A or 10In whichever is greater

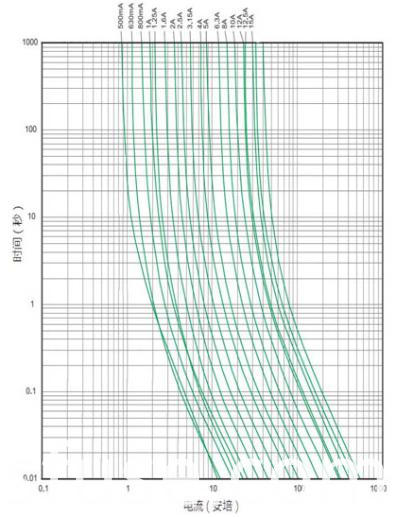

RT2-32(30)(Glass tube)Current-time curve

Glass Tube Fuse Time-Lag 6.3X30 mm
