Ceramic Tube Fuse Time-Lag 6.3X30 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: RT1-(32)30
Product Description
Model NO.: RT1-(32)30 Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: Songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Standard: TUV Specification: 6.3x30 mm HS Code: 85361000 The fuse is for protecting electric devices in case of short circuit and overload in. It is a tube type slow blow fuse, made of glass tube with clean surface, no crack or distortion. The nickel plating brass caps with fine electrical conductivity are fixed in both ends. The melt is made of silver copper alloy. It is a built-in product without lead which complies with the standard of IEC60127-II, and also obtained certification TUV .This product is widely used in white goods, power supply, electrical working tools and industrial controlling system. The dimension of the fuse is 31.8±0.8(30±1)with diameter ø6.35±1.
Unit:mm

Electrical characteristics
Current characteristics
Rated breaking capacity
35A or 10In whichever is greater
Certification
Current-time curve

Contact us if you need more details on 4 AMP Time-Lag Glass Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 5 AMP Slow Blow Glass Fuse、6 AMP Glass Fuse Slow Blow. If these products fail to match your need, please contact us and we would like to provide relevant information.

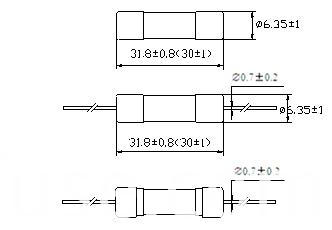

Unit:mm

Electrical characteristics
Model | Rated current (A) | Rated voltage (V) | Max Voltage drop (mV) | Max persistence Power consumption (W) |
RT1-32(30) | 500mA | 250 | 900 | 1.6 |
RT1-32(30) | 630mA | 250 | 300 | 1.6 |
RT1-32(30) | 750mA | 250 | 250 | 1.6 |
RT1-32(30) | 800mA | 250 | 150 | 1.6 |
RT1-32(30) | 1A | 250 | 150 | 1.6 |
RT1-32(30) | 1.25A | 250 | 150 | 1.6 |
RT1-32(30) | 1.6A | 250 | 150 | 1.6 |
RT1-32(30) | 2A | 250 | 150 | 1.6 |
RT1-32(30) | 2.5A | 250 | 120 | 1.6 |
RT1-32(30) | 3.15A | 250 | 100 | 1.6 |
RT1-32(30) | 4A | 250 | 100 | 1.6 |
RT1-32(30) | 5A | 250 | 100 | 1.6 |
RT1-32(30) | 6.3A | 250 | 100 | 1.6 |
RT1-32(30) | 8A | 250 | 100 | 4 |
RT1-32(30) | 10A | 125/250 | 100 | 4 |
RT1-32(30) | 12.5A | 125/250 | 80 | 6 |
RT1-32(30) | 16A | 125/250 | 80 | 6 |
Current characteristics
Rated | Blowing time | ||
More than 100mA-10A | More than 10A-16A | ||
2.1In | Max | 2min | 5min |
2.75 In | Min | 600ms | 600ms |
Max | 10s | 15s | |
4 In | Min | 150ms | 150ms |
Max | 3s | 5s | |
10 In | Min | 20ms | 20ms |
Max | 300ms | 400ms |
Rated breaking capacity
35A or 10In whichever is greater
Certification
Model | Certification | Certification number | Current range |
RT1-32(30) | TUV | J50092424-0003 J50317651 | 1A-25A |

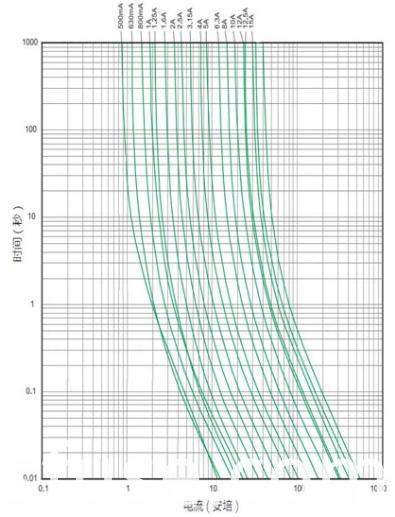

Current-time curve

Contact us if you need more details on 4 AMP Time-Lag Glass Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 5 AMP Slow Blow Glass Fuse、6 AMP Glass Fuse Slow Blow. If these products fail to match your need, please contact us and we would like to provide relevant information.
