Glass Tube Fuse Fast-Acting 6.3 X 30 mm

Model NO.: RF2-32(30) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Specification: 6.3 x 30 mm HS Code: 85361000 Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: VDE Origin: Shanghai, China RF2-32(30) (Glass tube)
RF2-32(30) glass tube: The fuse is a kind of power protector of short-circuit and over load in Electric devices. It is a fast-acting tube type fuse protector made of glass tube with clean surface, no crack or distortion. The two sides are nickel plating brass caps with fine electrical conductivity. The melting wire is made of copper silver alloy. It is a lead built-in product which complies with the standard of IEC60127-II, and also got the certificate TUV, CCC and CQC. This product is widely used in white goods, power supply, electrical working tools and industrial controlling system. The tube dimension is 31.8±0.8(30±1)with diameter ø6.35±1.
This product has reached the lead-free requirements, no pollution to the environment, in line with environmental protection requirements, thus can be assured of the use.

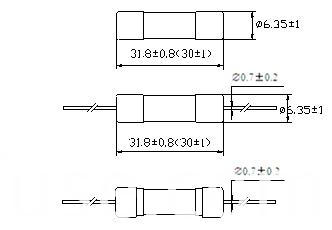

Unit:mm



Electrical  characteristics

Model	Rated current (A)	Rated voltage (V)	Max Voltage drop (mV)	Max persistence Power consumption (W)
RF2 -32(30)	500mA	250	2000	1.6
RF2 -32(30)	630mA	250	1800	1.6
RF2 -32(30)	750mA	250	1500	1.6
RF2 -32(30)	800mA	250	500	1.6
RF2 -32(30)	1A	250	500	1.6
RF2 -32(30)	1.25A	250	400	2.5
RF2 -32(30)	1.6A	250	400	2.5
RF2 -32(30)	2A	250	300	2.5
RF2 -32(30)	2.5A	250	250	2.5
RF2 -32(30)	3A	250	250	4
RF2 -32(30)	3.15A	250	250	4
RF2 -32(30)	4A	250	250	4
RF2 -32(30)	5A	250	200	4
RF2 -32(30)	6.3A	250	200	4
RF2 -32(30)	8A	250	200	4
RF2 -32(30)	10A	250	200	4
RF2 -32(30)	12.5A	250	180	6
RF2 -32(30)	16A	250	180	6


Current characteristics

Rated		Blowing time
		More than 100mA-10A	More than 10A-16A
2.1In	Max	20s	60s
2.75 In	Min	20ms	20ms
	Max	1500ms	3s
4 In	Min	8ms	8ms
	Max	400ms	1s
10 In	Min	80ms	150ms


Rated breaking capacity
35A or 10In whichever is greater

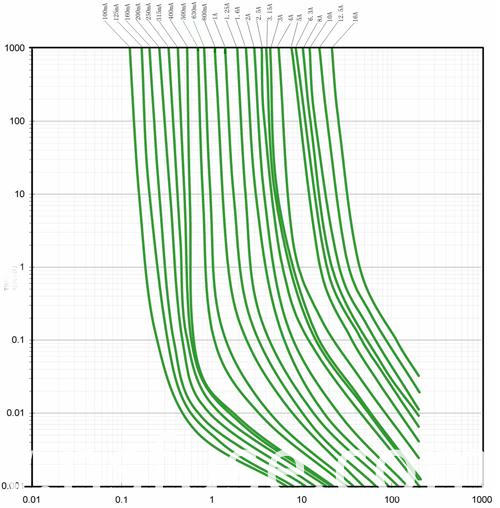

RF2-32(30)(Glass tube) Current-time curve



                                     Current(A)
