Glass Tube Fuse Fast-Acting 6.3 X 30 mm

Model NO.: RF1-32 (30) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: TUV Specification: 6.3x30 mm HS Code: 85361000 RF1-32(30)(Glass tube)

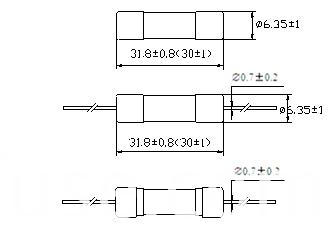

RF1-32(30) glass tube: The fuse is used as power protector of short circuit and over load in Electric devices. It is a tube type fast fuse protector made of glass tube with clean surface, without crack or distortion. The two sides are covered by nickel plating brass caps with fine electrical conductivity. The melting body is made of silver-copper alloy. It is built-in product with no lead which is in accordance with the standard of IEC60127-II, and also acquired the certificate CCC, CQC and TUV. This product is widely applied in power supply, white goods, electrical tools and industrial controlling system. The tube dimension is 31.8±0.8(30±1)with wire sized ø6.35±1.


Unit:mm



Electrical  characteristics

Model	Rated current (A)	Rated voltage (V)	Max Voltage drop (mV)	Max persistence Power consumption (W)
RF1 -32(30)	500mA	250	2000	1.6
RF1 -32(30)	630mA	250	1800	1.6
RF1 -32(30)	750mA	250	1500	1.6
RF1 -32(30)	800mA	250	500	1.6
RF1 -32(30)	1A	250	500	1.6
RF1 -32(30)	1.25A	250	400	2.5
RF1 -32(30)	1.6A	250	400	2.5
RF1 -32(30)	2A	250	300	2.5
RF1 -32(30)	2.5A	250	250	2.5
RF1 -32(30)	3A	250	250	4
RF1 -32(30)	3.15A	250	250	4
RF1 -32(30)	4A	250	250	4
RF1 -32(30)	5A	250	200	4
RF1 -32(30)	6.3A	250	200	4
RF1 -32(30)	7A	250	200	4
RF1 -32(30)	8A	250	200	4
RF1 -32(30)	10A	250	200	4
RF1 -32(30)	12.5A	250	180	6
RF1 -32(30)	15A	250	180	6
RF1 -32(30)	16A	250	180	6
RF1 -32(30)	20A	250	180	6



Current characteristics

Rated		Blowing time
		More than 100mA-10A	More than 10A-16A
2.1In	Max	20s	60s
2.75 In	Min	20ms	20ms
	Max	1500ms	3s
4 In	Min	8ms	8ms
	Max	400ms	1s
10 In	Min	80ms	150ms

Rated breaking capacity
35A or 10In whichever is greater

Certification

Model	Certification	Certification number	Current range
RF1-30	TUV	J50088738-0002	1A-20A

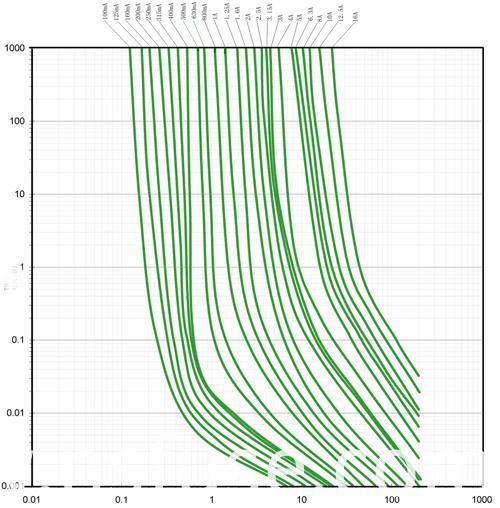

RF1-32(30) (Glass tube) Current-time curve



                                      Current(A)
