Glass Tube Fuse Axial Lead Time-Lag 5 X 20 mm

Model NO.: RT2-20 Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Specification: 5.0x20 mm HS Code: 85361000 Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Trademark: Songshan Origin: Shanghai, China The product, with rated interrupting ability 35A or 10In, is a slow blow axial lead fuse. The main materials of the fuse have copper, ceramic tube and alloy wire, which indicates the conventional glass tube of fuses, was replaced with ceramic tube to meet different requirements of different customers. The fuse is in accordance with IEC standards, and the fuse is indeed a high quality product with good stability. The fuse has been sold domestically and internationally and got more and more compliments. The requirements of the customers are the purposes of our continuous efforts.

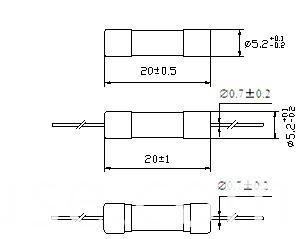

Unit:mm



Electrical  characteristics

Model	Rated current (A)	Rated voltage (V)	Max Voltage drop (mV)	Max persistence Power consumption (W)
RT2-20	500mA	250	900	1.6
RT2-20	630mA	250	300	1.6
RT2-20	750mA	250	250	1.6
RT2-20	800mA	250	150	1.6
RT2-20	1A	250	150	1.6
RT2-20	1.25A	250	150	1.6
RT2-20	1.6A	250	150	1.6
RT2-20	2A	250	150	1.6
RT2-20	2.5A	250	120	1.6
RT2-20	3.15A	250	100	1.6
RT2-20	4A	250	100	1.6
RT2-20	5A	250	100	1.6
RT2-20	6.3A	250	100	1.6
RT2-20	8A	250	100	4
RT2-20	10A	125/250	100	4
RT2-20	12.5A	125/250	80	6
RT2-20	16A	125/250	80	6



Current characteristics

Rated		Blowing time
		More than 100mA-10A	More than 10A-16A
2.1In	Max	2min	5min
2.75 In	Min	600ms	600ms
	Max	10s	15s
4 In	Min	150ms	150ms
	Max	3s	5s
10 In	Min	20ms	20ms
	Max	300ms	400ms


Rated breaking capacity
35A or 10In whichever is greater

Current-time curve
