Glass Tube Fuse Fast-Acting 5 X 20 mm
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: RF1-20
Product Description
Model NO.: RF1-20 Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: Songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: VDE Specification: 5x20 mm HS Code: 85361000 The basic material of the fuse is copper and glass tube with wire, the fuse is fast without lead, the rated breaking capacity is 35A or 10In, the fuses with small size are widely used in circuit board of various household appliances and related products, and comply with IEC standard, after a long time of technical precipitation, the product reliability increases and has been in a dominant product in the peer. The fuses have been sold to around the world and received unanimous praise.
Unit:mm

Electrical characteristics
Current characteristics
Rated breaking capacity
35A or 10In whichever is greater
Certification
Current-time curve

Contact us if you need more details on 6.3 AMP Fast Blow Glass Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 10 AMP Glass Fuse Fast Blow、3 AMP Fast-Acting Glass Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.

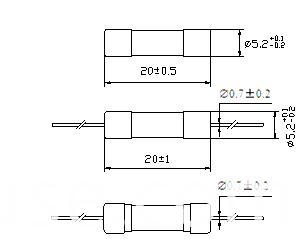

Unit:mm

Electrical characteristics
Model | Rated current (A) | Rated voltage (V) | Max Voltage drop (mV) | Max persistence Power consumption (W) |
RF1-20 | 500mA | 250 | 1000 | 1.6 |
RF1-20 | 630mA | 250 | 650 | 1.6 |
RF1-20 | 750mA | 250 | 650 | 1.6 |
RF1-20 | 800mA | 250 | 240 | 1.6 |
RF1-20 | 1A | 250 | 200 | 1.6 |
RF1-20 | 1.25A | 250 | 200 | 1.6 |
RF1-20 | 1.5A | 250 | 200 | 1.6 |
RF1-20 | 1.6A | 250 | 190 | 1.6 |
RF1-20 | 2A | 250 | 170 | 1.6 |
RF1-20 | 2.5A | 250 | 170 | 1.6 |
RF1-20 | 3.15A | 250 | 150 | 2.5 |
RF1-20 | 4A | 250 | 130 | 2.5 |
RF1-20 | 5A | 250 | 130 | 2.5 |
RF1-20 | 6.3A | 250 | 130 | 2.5 |
RF1-20 | 7A | 250 | 130 | 4 |
RF1-20 | 8A | 250 | 130 | 4 |
RF1-20 | 10A | 125/250 | 130 | 4 |
RF1-20 | 12.5A | 125/250 | 100 | 6 |
RF1-20 | 16A | 125/250 | 100 | 6 |
Current characteristics
Rated | Blowing time | |||
more than 100mA-6.3A | more than 6.3A-10A | more than 10A-16A | ||
2.1In | Max | 30min | 30min | 30min |
2.75 In | Min | 50ms | 50ms | 50ms |
Max | 2s | 2s | 3s | |
4 In | Min | 10ms | 10ms | 10ms |
Max | 300ms | 400ms | 400ms | |
10 In | Max | 20ms | 40ms | 50ms |
Rated breaking capacity
35A or 10In whichever is greater
Certification
Model | Certification | Certification number | Current range |
RF1-20 | VDE | 136760 | 1A-5A |
RF1-20 | TUV | J50078894-0001 J50078894-0005 | 6.3A-15A |

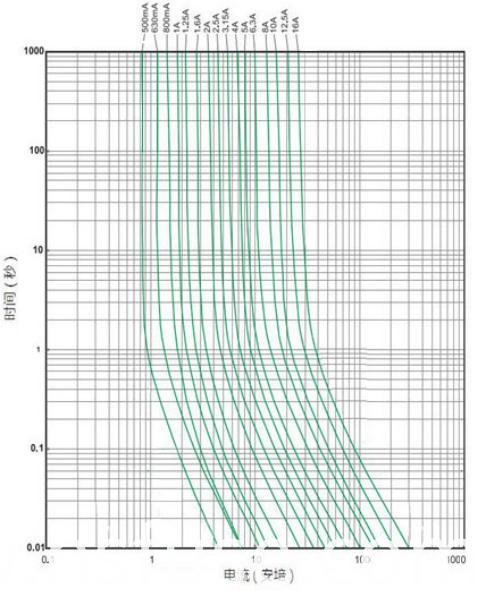

Current-time curve

Contact us if you need more details on 6.3 AMP Fast Blow Glass Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 10 AMP Glass Fuse Fast Blow、3 AMP Fast-Acting Glass Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
