Fuse Clip for 5 X 20 mm Tubular Fuse

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  JZ-003

Product Description

Model NO.: JZ-003 Origin: Shanghai, China Usaga: Low Voltage HS Code: 85361000 JZ-003, a Fuse Clip suited for 5 x 20 mm tubular fuses, is in the shape of straight leg, the main material is tin phosphor bronze, with good contact. The clamping force is 2N or more, it is suitable for the fuses rated current 6A and below. The product will be used on the circuit board according to the customer requirement. The special coating is used on the product, thus it has the features such as long service life, no rust, no spot, neat appearance. The material thickness is 3u. The product has been selling well in the market and it is a star product in the customized version.

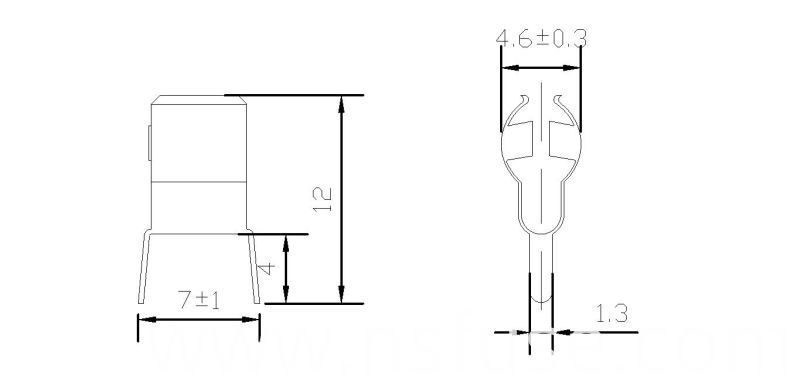

Fuse Clips
A=Model              B=For Fuse-Links
C= Current/Material     D= Plug in and Take off Force
E= Metal Material       F=Material Thickness(mm)

A=JZ-003
B=Ø5×20
C=6A/250VAC
D=>2N
E=Phosphor bronze
F=0.3t
Fuse Clip for 5 X 20 mm Tubular Fuse

Contact us if you need more details on 15 AMP Fuse Block. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 20 AMP Fuse Block、25 AMP Fuse Block. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Fuse Clip
