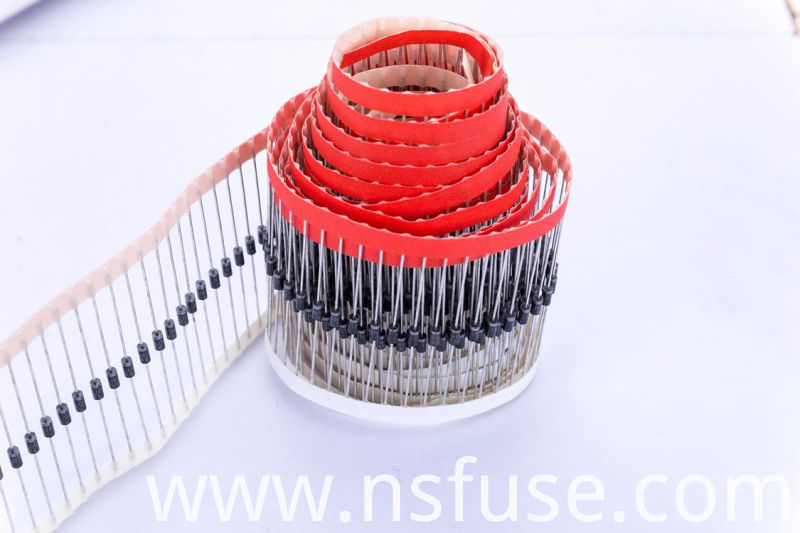

Professional Supply of High Quality Diode, Zener Diode, LED, High-Speed Switch Diode

    Payment Type: T/T
    Min. Order: 1000
    Productivity: 500000 Piece/Pieces Per Month
    Place of Origin:  Guangdong, China (Mainland)
    Supply Ability: 500000 Piece/Pieces Per Month
    Certificate: RoHS/ISO9000
  • Mr. Catherine Zhou

Basic Info

Model No.:  diode

Product Description

Model NO.: Diode Application: General Purpose Color: Black Max. Forward Voltage: 1.0V Max. Forward Current: 1A Operating Temperature: -65ºC to +175ºC Shipping by: FedEx DHL TNT UPS Operating Frequency: High Frequency Transistor Trademark: Xuhai Specification: 4.5*15mm Encapsulation Structure: Ceramic Packaged Transistor Certification: RoHS/ISO9000 Material: Germanium Transistors Max. Reverse Voltage: 50-1000V Max. Reverse Current: 5.0ua Tolerance: ±5% Function and Usage: Microwave Transistor Current Capacity: High Power Transistor Transport Package: Box Packaging(50cm*32cm*32cm) Origin: Guangdong, China (Mainland) Professional Supply of High Quality Diode, Zener Diode, LED, High-Speed Switch Diode  Professional Supply of High Quality Diode, Zener Diode, LED, High-Speed Switch DiodeFeatures: 1.For surface mounted application
2.Easy pick and place
3.Metal to silicon rectifier, majority carrier conduction
4.Low power loss, high efficiency
5.High current capability, low VF
6.High surge current capability
7.Plastic material used carriers Underwriters Laboratory Classification 94V-0
8.Epitaxial construction
9.High temperature soldering: 260oC / 10 seconds at terminals
10.Operating Temperature: -55°C to +125°C
11.Storage temperature: -55°C to +150°C
12.Maximum Thermal Resistance: 28°C/W Junction To Lead
Maximum  Ratings&Thermal  Characteristics Ratings at 25ºC ambient temperature unless otherwise specified.

Symbol

Parameter

Value

Unites

I F(AV)

Maximum Average Forward Rectified Current

1.0

A

I FSM

Peak   Forward   Surge   Current
(8.3 ms single half-sine-wave superimposed on rated load)

30

A

V RRM

Maximum Peak Repetitive Reverse Voltage

1000

V

V RMS

Maximum   RMS Voltage

700

V

V DC

Maximum  DC  blocking  Voltage

1000

V

RθJA

Typical Thermal resistance (NOTE 1)

50

ºC/W

T A

Maximum DC blocking Voltage  Temperature

+150

ºC

T J,TSTG

Operating Junction and Storage Temperature Range

-65 to +150

ºC


Electrical Characteristics Ratings at 25ºC ambient temperature unless otherwise specified.

Symbol

Parameter

Value

Units

V F

Maximum  Instantaneous  Forward  Voltage

1.1

V

I R

Maximum  DC  Reverse  Current



μA



TA=25ºC At Rated DC blocking Voltage TA=100

5.0





ºC

50



C J

Typical Junction capacitance  at 4.0V, 1MHz

15

pF

PS: 1.This company specialized production various specifications and types of diodes        2. Please consult your understanding with the company for details

Professional Supply of High Quality Diode, Zener Diode, LED, High-Speed Switch Diode

Contact us if you need more details on Diode. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Rectifier Diode、SMD Diode. If these products fail to match your need, please contact us and we would like to provide relevant information.
