Ceramic Tube Fuse 6.3*30 Double-Cap Fast-Acting

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  Ceramic tube(Double cap with a line)

Product Description

Model NO.: Ceramic tube(Double cap with a line) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Standard: TUV Specification: 6.3 x 30 mm HS Code: 85361000 RT1-32  Ceramic tube(Double cap with a line)
This product is used for protecting electric devices against short-circuit and over-load. It is a time-lag tube-type fuse protector, which is made of ceramic tube with clean surface, and no crack or distortion. The both sides are caps made of nickel plating brass with good electrical conductivity. The melt is made of copper silver alloy. It is a no lead built-in product, which is in line with the standard of IEC60127-II, and acquired the certificate TUV CCC and CQC. This product is widely used in electrical working tools, industrial controlling system, white goods and power supply, etc. The tube dimension is 31.8±0.8(30±1)with diameter ø6.35±1.

Unit:mm


Ceramic Tube Fuse 6.3*30 Double-Cap Fast-Acting


Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
RT1-32 500mA 250 900 1.6
RT1-32 630mA 250 300 1.6
RT1-32 750mA 250 250 1.6
RT1-32 800mA 250 150 1.6
RT1-32 1A 250 150 1.6
RT1-32 1.25A 250 150 1.6
RT1-32 1.6A 250 150 1.6
RT1-32 2A 250 150 1.6
RT1-32 2.5A 250 120 1.6
RT1-32 3A 250 100 1.6
RT1-32 3.15A 250 100 1.6
RT1-32 4A 250 100 1.6
RT1-32 5A 250 100 1.6
RT1-32 6A 250 100 1.6
RT1-32 6.3A 250 100 1.6
RT1-32 7A 250 100 1.6
RT1-32 8A 250 100 4
RT1-32 10A 250 100 4
RT1-32 12.5A 250 80 6
RT1-32 15A 250 80 6
RT1-32 16A 250 80 6
RT1-32 20A 250 80 6



Current characteristics
Rated  Blowing time
More than
500mA-10A
More than
10A-16A
2.1In Max 2min 5min
2.75
In
Min 600ms 600ms
Max 10s 15s
4 In Min 150ms 150ms
Max 3s 5s
10 In Min 20ms 20ms
Max 300ms 400ms

Rated breaking capacity
35A or 10In whichever is greater

Certification
Model Certification Certification number Current range
RT1-32 TUV J50317651-0001 1A-20A

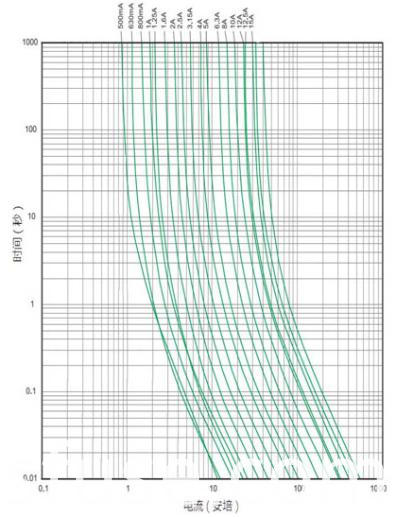

RT1-32Ceramic tube(Double cap with a line)  Current-time curve


Ceramic Tube Fuse 6.3*30 Double-Cap Fast-Acting
