Ceramic Tube Fuse Fast-Acting High Breaking Capacity
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: 210 (H)
Product Description
Model NO.: 210 (H) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: Songshan HS Code: 85361000 Breaking Capacity: High Usaga: Low Voltage Fusing Speed: F Standard: UR, CSA Origin: Shanghai, China The fuse has the UL certification, and is exported to the America, the fuse type is 210: 200mA/ 250mA/ 300mA/ 400mA/ 500mA/ 600mA/ 700mA/ 800mA/ 250V1A/ 1.25A /1.6A/ 2A/ 2.5A/ 3A/ 250V (0 ~ 3A, 250V) 3A/ 300V, the fuse viewing from the outside is glass, single wire and two blocks. The fuse is divided into the ones with lead and without lead. The widely used fuse can protect circuit because it is soft wire, and is the most simple fuse-link, when the overload of electricity happens, it can first sacrifice itself to protect the safety of the whole circuit. The fire of household appliances is mostly caused by overload. So fuses not only protect the product itself, more protection responsibility is all family property and family life safety.
Unit:mm
Electrical characteristics
Current characteristics
Rated breaking capacity
750 amperes at 125Vac(1A~15A)
750 amperes at 250Vac(1A~15A)
Certification
210(H) Current-time curve
Current(A)
Contact us if you need more details on 4 AMP Fast Blow HBC Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 8 AMP Hbc Fuse Fast Blow、15 AMP Hbc Fuse Fast-Acting. If these products fail to match your need, please contact us and we would like to provide relevant information.

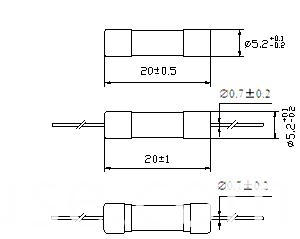

Unit:mm
Electrical characteristics
Model | Rated current (A) | Rated voltage (V) | Max Voltage drop (mV) | Max persistence Power consumption (W) |
210(H) | 1A | 125/250 | ||
210(H) | 1.25A | 125/250 | ||
210(H) | 1.6A | 125/250 | ||
210(H) | 2A | 125/250 | ||
210(H) | 2.5A | 125/250 | ||
210(H) | 3A | 125/250 | ||
210(H) | 4A | 125/250 | 100 | 1.6 |
210(H) | 5A | 125/250 | 100 | 1.6 |
210(H) | 6.3A | 125/250 | 100 | 1.6 |
210(H) | 8A | 125/250 | 100 | 4 |
210(H) | 10A | 125/250 | 100 | 4 |
210(H) | 12.5A | 125/250 | 80 | 6 |
210(H) | 15A | 125/250 | 80 | 6 |
Current characteristics
Rated | Blowing time | |||
More than 1A-15A | ||||
1.5In | Min | 30min | ||
2.1In | Max | 30min | ||
2.75 In | Min | 40ms | ||
Max | 20s | |||
4 In | Min | 10ms | ||
Max | 1s | |||
10 In | Max | 40ms |
Rated breaking capacity
750 amperes at 125Vac(1A~15A)
750 amperes at 250Vac(1A~15A)
Certification
Model | Certification | Certification number | Current range |
210(H) | UR | JDYX2.E171685 | 1-15A |
210(H) | CSA | JDYX8.E171685 | 1-15A |

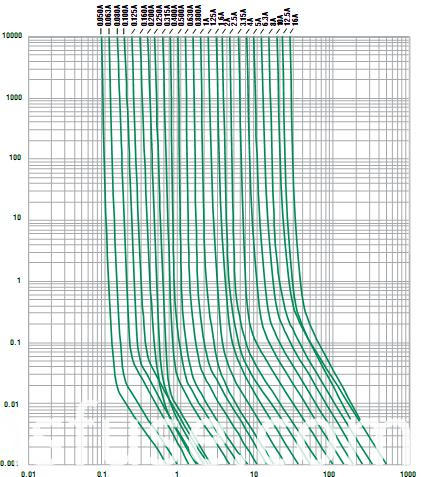

210(H) Current-time curve
Current(A)
Contact us if you need more details on 4 AMP Fast Blow HBC Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 8 AMP Hbc Fuse Fast Blow、15 AMP Hbc Fuse Fast-Acting. If these products fail to match your need, please contact us and we would like to provide relevant information.
