Ceramic Tube Hbc Fuse 6.35 X 31.8 mm

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  306 series

Product Description

Model NO.: 306 series Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Specification: 6.35 X 31.8 mm HS Code: 85361000 Breaking Capacity: High Usaga: Low Voltage Fusing Speed: F Trademark: songshan Origin: Shanghai, China 306 series
This type of fuse without lead is designed to ceramic tube, single cap and high breaking capacity, and is mainly used in air conditioning, refrigerator, washing machine and other white goods, power supply, industrial control and other related fields. The breaking capacity of the fuses is 1000 A at 500V AC, and thus the fuses belong to the high security characteristic components. Such type of fuses with high breaking capacity is more secure under the same current characteristics. The performance of the fuses is in line with the UL248-14 standard, also the QJB/YXRT39-2015 enterprise military standard of China. The size of the fuses is 6.35×31.8 mm, and the fuses are usually fitted with fuse clips for use.

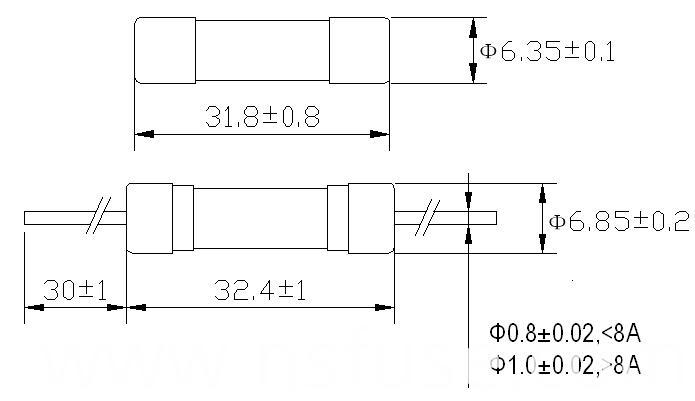

Unit:mm

Ceramic Tube Hbc Fuse 6.35 X 31.8 mm

Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
306 200mA 500 1500
306 250mA 500 1300
306 315mA 500 1100
306 400mA 500 1000
306 500mA 500 900
306 630mA 500 300
306 800mA 500 250
306 1A 500 150
306 1.25A 500 150
306 1.6A 500 150
306 2A 500 150
306 2.5A 500 120
306 3.15A 500 100
306 4A 500 100
306 5A 500 100
306 6.3A 500 100
306 8A 500 100
306 10A 500 100
306 12A 500 80
306 12.5A 500 80
306 15A 500 80
306 16A 500 80
306 20A 500 80
306 30A 500 80


Current characteristics
Rated  Blowing time
100% 4hour Min
150% 30 min Max
200% 30 min Max
300% 10s Max


Rated breaking capacity
1000 amperes at 500ac

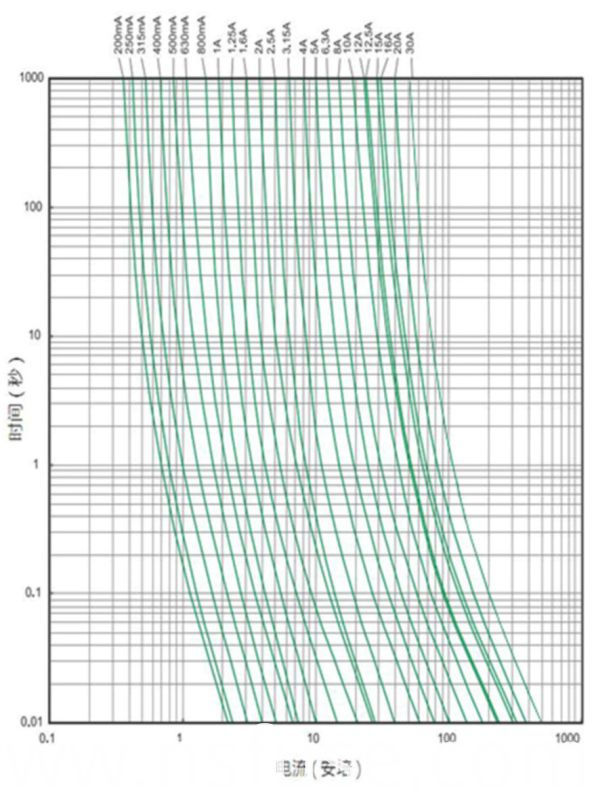

 Current-time curve

Ceramic Tube Hbc Fuse 6.35 X 31.8 mm
