Home > Products > Cartridge Fuse > Ceramic Fuse > Ceramic Tube Fuse 5*20 Time-Lag High-Breaking 125V/250V Rt2-20 (H)

Ceramic Tube Fuse 5*20 Time-Lag High-Breaking 125V/250V Rt2-20 (H)

Basic Info

Model No.:  RT2-20 (H)

Product Description

Model NO.: RT2-20 (H) Type: Current Fuse Shape: Circle Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: High Usaga: Low Voltage Fusing Speed: T Standard: VDE Specification: 5x20 mm HS Code: 85361000 RT2-20 (H) series
RT2-20 (H), dimension Ф5×20±1, ceramic tube, high breaking, slow blow, lead fuse, direct welding.
Fuse, as a security element, in addition to its performance requirements, must have strict safety requirements, an important indicator of fuse safety performance is reflected in breaking capacity of a fuse, which means the maximum short-circuit current a fuse can withstand without any unsafe phenomenon in the process of breaking the circuit, the unsafe phenomena include sustained arcing, smoke, spray, splash, combustion and explosion etc. Quartz sand is a good material for insulation, cooling and arc extinguishing. As a product full of quartz sand, it has good stability and security.

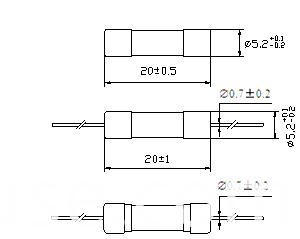

Unit:mm

Ceramic Tube Fuse 5*20 Time-Lag High-Breaking 125V/250V Rt2-20 (H)

Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
RT2-20(H) 1A 250 350 2.5
RT2-20(H) 1.25A 250 300 2.5
RT2-20(H) 1.6A 250 200 2.5
RT2-20(H) 2A 250 190 2.5
RT2-20(H) 2.5A 250 180 2.5
RT2-20(H) 3.15A 250 140 4
RT2-20(H) 4A 250 100 4
RT2-20(H) 5A 250 100 4
RT2-20(H) 6.3A 250 100 4
RT2-20(H) 8A 250 100 4
RT2-20(H) 10A 250 100 4
RT2-20(H) 12.5A 250 80 4
RT2-20(H) 16A 250 80 6

RT2-20 (H) Current characteristics
Rated  Blowing time
1A-3.15A More than
3.15A-10A
More than
10A-16A
2.1In Max 30min 30min 30min
2.75
In
Min 750ms 750ms 750ms
Max 80s 80s 80s
4 In Min 95ms 150ms 150ms
Max 5s 5s 8s
10 In Min 10ms 10ms 10ms
Max 150ms 150ms 150ms

Rated breaking capacity:1500A

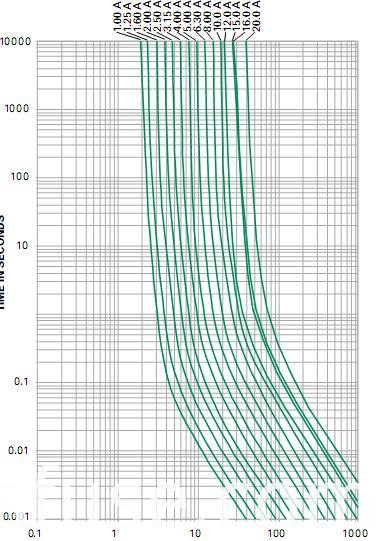

RT2-20(H) Current-time curve

Ceramic Tube Fuse 5*20 Time-Lag High-Breaking 125V/250V Rt2-20 (H)
                                       Current(A)

Contact us if you need more details on Slow Blow Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about High Breaking Fuse、2 AMP Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
