Hbc Tube Fuse Fast-Acting Axial Lead
- Place of Origin:
- Shanghai, China
Basic Info
Model No.: RF2-20(H)
Product Description
Model NO.: RF2-20(H) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: High Usaga: Low Voltage Fusing Speed: F Standard: VDE Specification: 5x20 mm HS Code: 85361000 RF2-20(H) series
RF2-20 (H) ceramic tube fast-acting high breaking capacity fuse with lead, size: Ф5×20±1, the products conform to IEC60127-11 standard.
This product is a high breaking product, the melt of such fuse with high breaking capacity is usually made of copper, and also silver. When the rated current is smaller, the melt is usually made into a filament; when the rated current is larger, it will be made into a variable cross-section. Since copper and silver are metal materials with high melting point, to break current reliably under high overload current, low melting point metal is often welded in the melt intervals, such as tin or cadmium alloy, in order to reduce the melting temperature, this effect is also known as metallurgical effect (M effect).

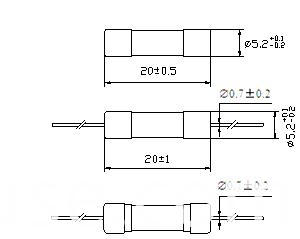

Unit:mm
Electrical characteristics
RF2-20(H) Current characteristics
Rated breaking capacity:1500A

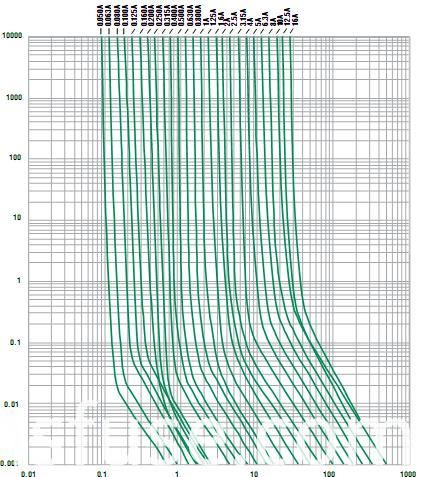

RF2-20(H) series Current-time curve
Current(A) Contact us if you need more details on 4 AMP Fast Blow Hbc Fuser. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 8 AMP Hbc Tube Fast Fuse、16 AMP HBC Fuse Fast-Acting. If these products fail to match your need, please contact us and we would like to provide relevant information.
RF2-20 (H) ceramic tube fast-acting high breaking capacity fuse with lead, size: Ф5×20±1, the products conform to IEC60127-11 standard.
This product is a high breaking product, the melt of such fuse with high breaking capacity is usually made of copper, and also silver. When the rated current is smaller, the melt is usually made into a filament; when the rated current is larger, it will be made into a variable cross-section. Since copper and silver are metal materials with high melting point, to break current reliably under high overload current, low melting point metal is often welded in the melt intervals, such as tin or cadmium alloy, in order to reduce the melting temperature, this effect is also known as metallurgical effect (M effect).
Unit:mm
Electrical characteristics
Model | Rated current (A) | Rated voltage (V) | Max Voltage drop (mV) | Max persistence Power consumption (W) |
RF2-20(H) | 500mA | 250 | 1800 | 2.5 |
RF2-20(H) | 630mA | 250 | 1500 | 2.5 |
RF2-20(H) | 800mA | 250 | 1200 | 2.5 |
RF2-20(H) | 1A | 250 | 1000 | 2.5 |
RF2-20(H) | 1.25A | 250 | 800 | 4 |
RF2-20(H) | 1.6A | 250 | 600 | 4 |
RF2-20(H) | 2A | 250 | 500 | 4 |
RF2-20(H) | 2.5A | 250 | 400 | 4 |
RF2-20(H) | 3.15A | 250 | 350 | 4 |
RF2-20(H) | 4A | 250 | 300 | 4 |
RF2-20(H) | 5A | 250 | 250 | 4 |
RF2-20(H) | 6.3A | 250 | 200 | 4 |
RF2-20(H) | 8A | 250 | 200 | 4 |
RF2-20(H) | 10A | 250 | 200 | 4 |
RF2-20(H) | 12.5A | 250 | 180 | 4 |
RF2-20(H) | 16A | 250 | 180 | 6 |
RF2-20(H) Current characteristics
Rated | Blowing time | ||||
500mA-4A | More than 4A-6.3A | More than 6.3A-10A | More than 10A-16A | ||
2.1In | Max | 30min | 30min | 30min | 30min |
2.75 In | Min | 10ms | 10ms | 40ms | 40ms |
Max | 2s | 3s | 20s | 20s | |
4 In | Min | 3ms | 3ms | 10ms | 10ms |
Max | 300ms | 300ms | 1s | 1s | |
10 In | Min | 20ms | 20ms | 30ms | 40ms |
Rated breaking capacity:1500A
RF2-20(H) series Current-time curve
Current(A) Contact us if you need more details on 4 AMP Fast Blow Hbc Fuser. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 8 AMP Hbc Tube Fast Fuse、16 AMP HBC Fuse Fast-Acting. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Cartridge Fuse > Ceramic Fuse
