Ceramic Tube Fuse Time-Lag Axial Lead 6.3 X 30 mm

Basic Info

Model No.:  RT2-30(C)

Product Description

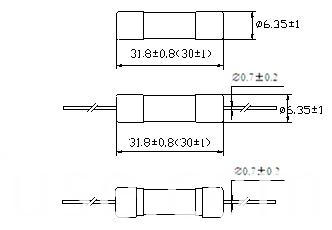

Model NO.: RT2-30(C) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Specification: 6.3x30 mm HS Code: 85361000 Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Trademark: Songshan Origin: Shanghai, China The fuse is used as power protector of short-circuit and over load in Electric devices. It is a tube type fast-acting fuse protector, which is made of ceramic tube with clean surface, no crack or distortion. Both ends are caps made of nickel plating brass copper with good conductivity; the melt is silver copper alloy wire. It is a no lead built-in product in line with the standard of IEC60127-II and obtained the certification TUV, CCC and CQC. The fuse product is broadly used in white goods, electric tools, power supply and industrial controlling. The outer dimension is 31.8±0.8(30±1) with diameter ø6.35±1.


Unit:mm
Ceramic Tube Fuse Time-Lag Axial Lead 6.3 X 30 mm


Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
RT2-32(30) 500mA 250 900 1.6
RT2-32(30) 630mA 250 300 1.6
RT2-32(30) 750mA 250 250 1.6
RT2-32(30) 800mA 250 150 1.6
RT2-32(30) 1A 250 150 1.6
RT2-32(30) 1.25A 250 150 1.6
RT2-32(30) 1.6A 250 150 1.6
RT2-32(30) 2A 250 150 1.6
RT2-32(30) 2.5A 250 120 1.6
RT2-32(30) 3.15A 250 100 1.6
RT2-32(30) 4A 250 100 1.6
RT2-32(30) 5A 250 100 1.6
RT2-32(30) 6.3A 250 100 1.6
RT2-32(30) 8A 250 100 4
RT2-32(30) 10A 125/250 100 4
RT2-32(30) 12.5A 125/250 80 6
RT2-32(30) 16A 125/250 80 6

Current characteristics
Rated  Blowing time
More than
100mA-10A
More than
10A-16A
2.1In Max 2min 5min
2.75
In
Min 600ms 600ms
Max 10s 15s
4 In Min 150ms 150ms
Max 3s 5s
10 In Min 20ms 20ms
Max 300ms 400ms

Rated breaking capacity
35A or 10In whichever is greater

Current-time curve

Ceramic Tube Fuse Time-Lag Axial Lead 6.3 X 30 mm
