Ceramic Tube Fuse Time-Lag 6.3 X 32 (30) mm

Model NO.: RT1-(32)30 Type: Current Fuse Shape: Circle Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: T Standard: TUV Specification: 6.3x32(30) mm HS Code: 85361000 RT1-(32)30 series (Ceramic tube)
This product is used for protecting electric devices against short-circuit and over-load. It is a time-lag tube-type fuse protector, which is made of ceramic tube with clean surface, and no crack or distortion. The both sides are caps made of nickel plating brass with good electrical conductivity. The melt is made of copper silver alloy. It is a no lead built-in product, which is in line with the standard of IEC60127-II, and acquired the certificate TUV CCC and CQC. This product is widely used in electrical working tools, industrial controlling system, white goods and power supply, etc. The tube dimension is 31.8±0.8(30±1)with diameter ø6.35±1.

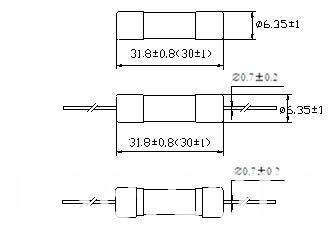

Unit:mm



Electrical  characteristics

Model	Rated current (A)	Rated voltage (V)	Max Voltage drop (mV)	Max persistence Power consumption (W)
RT1-32(30)	500mA	250	900	1.6
RT1-32(30)	630mA	250	300	1.6
RT1-32(30)	750mA	250	250	1.6
RT1-32(30)	800mA	250	150	1.6
RT1-32(30)	1A	250	150	1.6
RT1-32(30)	1.25A	250	150	1.6
RT1-32(30)	1.6A	250	150	1.6
RT1-32(30)	2A	250	150	1.6
RT1-32(30)	2.5A	250	120	1.6
RT1-32(30)	3.15A	250	100	1.6
RT1-32(30)	4A	250	100	1.6
RT1-32(30)	5A	250	100	1.6
RT1-32(30)	6.3A	250	100	1.6
RT1-32(30)	8A	250	100	4
RT1-32(30)	10A	125/250	100	4
RT1-32(30)	12A	250	80	6
RT1-32(30)	12.5A	125/250	80	6
RT1-32(30)	15A	250	80	6
RT1-32(30)	16A	125/250	80	6
RT1-32(30)	20A	250	80	6
RT1-32(30)	25A	250	80	6


Current characteristics

Rated		Blowing time
		More than 100mA-10A	More than 10A-16A
2.1In	Max	2min	5min
2.75 In	Min	600ms	600ms
	Max	10s	15s
4 In	Min	150ms	150ms
	Max	3s	5s
10 In	Min	20ms	20ms
	Max	300ms	400ms

Rated breaking capacity
35A or 10In whichever is greater

Certification

Model	Certification	Certification number	Current range
RT1-32(30)	TUV	J50092424-0003 J50317651	1A-25A


RT1-32(30)(Ceramic tube)Current-time curve


Contact us if you need more details on 250V Fuse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 4 AMP Time-Lag Ceramic Fuse、5 AMP Slow Blow Ceramic Fuse. If these products fail to match your need, please contact us and we would like to provide relevant information.
