Ceramic Tube Fuse Fast-Acting 6.3 X 30 mm

    Payment Type: T/T, D/P, Western Union, Paypal
    Min. Order: 1000
    Place of Origin:  Shanghai, China
  • Mr. Catherine Zhou

Basic Info

Model No.:  RF2-32(30)

Product Description

Model NO.: RF2-32(30) Type: Current Fuse Shape: Circle Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: TUV Specification: 6.3x30 mm HS Code: 85361000 RF2-32(30) (Ceramic tube)
RF2-32 (30) (H) ceramic tube, fast-acting, high breaking capacity, lead fuse can be directly welded to the integrated circuit board without being used with holders or clips. The size is 6.35×31.8±1.
Industrial development has damaged to the environment, in turn human understanding progress of nature and society put forward to protect the environment; only a good living environment can ensure human life and sustainable development. So far, part of the Japan / Taiwan / European users has begun to replace or do the transition work, products, which cannot meet the requirements of lead-free will no longer be used; and most of the production enterprises have to carry out this work, launched free products to replace leaded products, but the goal is still not fully reached.
This product has reached the lead-free requirements, no pollution to the environment, in line with environmental protection requirements, thus can be assured of the use.

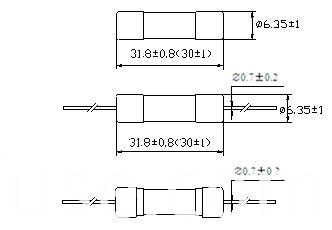

Unit:mm
Ceramic Tube Fuse Fast-Acting 6.3 X 30 mm


Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
RF2 -32(30) 500mA 250 2000 1.6
RF2 -32(30) 630mA 250 1800 1.6
RF2 -32(30) 750mA 250 1500 1.6
RF2 -32(30) 800mA 250 500 1.6
RF2 -32(30) 1A 250 500 1.6
RF2 -32(30) 1.25A 250 400 2.5
RF2 -32(30) 1.6A 250 400 2.5
RF2 -32(30) 2A 250 300 2.5
RF2 -32(30) 2.5A 250 250 2.5
RF2 -32(30) 3A 250 250 4
RF2 -32(30) 3.15A 250 250 4
RF2 -32(30) 4A 250 250 4
RF2 -32(30) 5A 250 200 4
RF2 -32(30) 6.3A 250 200 4
RF2 -32(30) 8A 250 200 4
RF2 -32(30) 10A 250 200 4
RF2 -32(30) 12.5A 250 180 6
RF2 -32(30) 16A 250 180 6

Current characteristics
Rated  Blowing time
More than
100mA-10A
More than
10A-16A
2.1In Max 20s 60s
2.75
In
Min 20ms 20ms
Max 1500ms 3s
4 In Min 8ms 8ms
Max 400ms 1s
10 In Min 80ms 150ms


Rated breaking capacity
35A or 10In whichever is greater

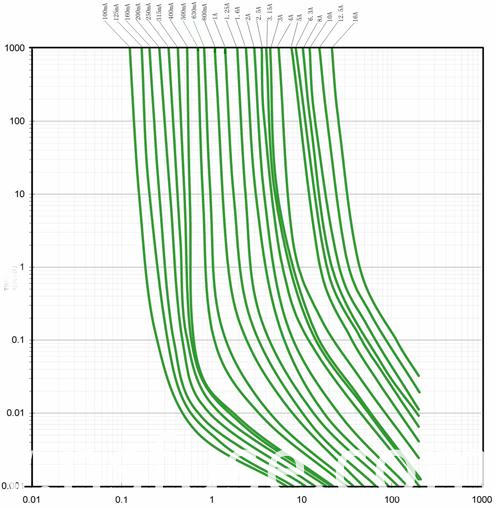

RF2-32(30)(Ceramic tube)Current-time curve

Ceramic Tube Fuse Fast-Acting 6.3 X 30 mm
                                             Current(A)
