Ceramic Tube Fuse Fast-Acting 6.3 X 30 mm

Basic Info

Model No.:  RF1-32(30)

Product Description

Model NO.: RF1-32(30) Type: Current Fuse Shape: Insert Fusing Device: Pop-up Solid Trademark: songshan Origin: Shanghai, China Breaking Capacity: Low Usaga: Low Voltage Fusing Speed: F Standard: TUV Specification: 6.3 x 30 mm HS Code: 85361000 RF1-32(30)(Ceramic tube)
RF1-32 (30) (H) is ceramic tube fast-acting high breaking fuse with size 6.35 * 31.8. This product is to be fixed with a holder or clip.
The general structure includes a fuse tube and a contact conductive portion, support insulator and a base part, the fuse tube is filled with quartz sand for arc extinguishing, the melt is metal wire or metal plate made of metal material with low melting point, connected in series in the circuit to be protected, when overload or failure occurs in the circuit or device, the melt heats up and melts down and, thereby cut off the circuit to protect the circuit or equipment. Generally it is applicable to large power electric appliances.

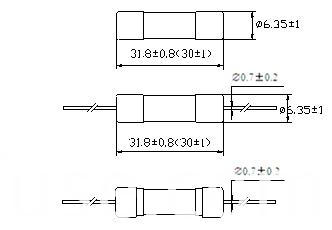

Unit:mm

Ceramic Tube Fuse Fast-Acting 6.3 X 30 mm


Electrical  characteristics
   Model Rated current
(A)
Rated voltage
(V)
Max
Voltage drop
(mV)
Max
persistence
Power consumption
(W)
RF1 -32(30) 500mA 250 2000 1.6
RF1 -32(30) 630mA 250 1800 1.6
RF1 -32(30) 750mA 250 1500 1.6
RF1 -32(30) 800mA 250 500 1.6
RF1 -32(30) 1A 250 500 1.6
RF1 -32(30) 1.25A 250 400 2.5
RF1 -32(30) 1.6A 250 400 2.5
RF1 -32(30) 2A 250 300 2.5
RF1 -32(30) 2.5A 250 250 2.5
RF1 -32(30) 3A 250 250 4
RF1 -32(30) 3.15A 250 250 4
RF1 -32(30) 4A 250 250 4
RF1 -32(30) 5A 250 200 4
RF1 -32(30) 6.3A 250 200 4
RF1 -32(30) 8A 250 200 4
RF1 -32(30) 10A 250 200 4
RF1 -32(30) 12.5A 250 180 6
RF1 -32(30) 16A 250 180 6


Current characteristics
Rated  Blowing time
More than
100mA-10A
More than
10A-16A
2.1In Max 20s 60s
2.75
In
Min 20ms 20ms
Max 1500ms 3s
4 In Min 8ms 8ms
Max 400ms 1s
10 In Min 80ms 150ms



Rated breaking capacity
35A or 10In whichever is greater

Certification
Model Certification Certification number Current range
  RF1-32(30) TUV J50088738-0002 1A-20A

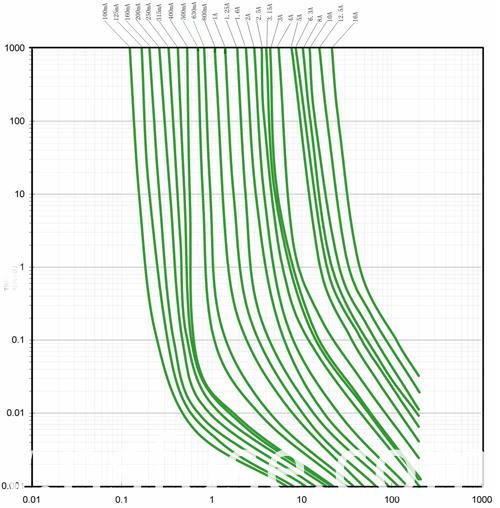

RF1-32(30) (Ceramic tube)Current-time curve

Ceramic Tube Fuse Fast-Acting 6.3 X 30 mm
                                     Current(A)
